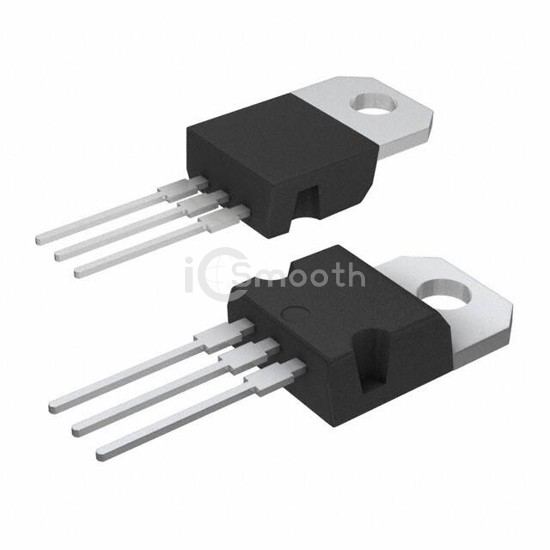

STGP20M65DF2 - STMicroelectronics - Transistors - IGBTs - Single
REF: STGP20M65DF2 STMicroelectronics
STGP20M65DF2

STMicroelectronics

IGBT TRENCH 650V 40A TO220

STGP20M65DF2 is a Transistors - IGBTs - Single manufactured by STMicroelectronics. IGBT TRENCH 650V 40A TO220. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 175°C (TJ), package / case TO-220-3, current - collector (ic) (max) 40 A.

Datasheet Request a Quote

In Stock: 3,267

Specifications

17 parameters
Product StatusActive
IGBT TypeTrench Field Stop
Voltage - Collector Emitter Breakdown (Max)650 V
Current - Collector (Ic) (Max)40 A
Current - Collector Pulsed (Icm)80 A
Vce(on) (Max) @ Vge, Ic2V @ 15V, 20A
Power - Max166 W
Switching Energy140µJ (on), 560µJ (off)
Input TypeStandard
Gate Charge63 nC
Td (on/off) @ 25°C26ns/108ns
Test Condition400V, 20A, 12Ohm, 15V
Reverse Recovery Time (trr)166 ns
Operating Temperature-55°C ~ 175°C (TJ)
Mounting TypeThrough Hole
Package / CaseTO-220-3
Supplier Device PackageTO-220
