STGP10NB60SFP

In Stock: 8,337

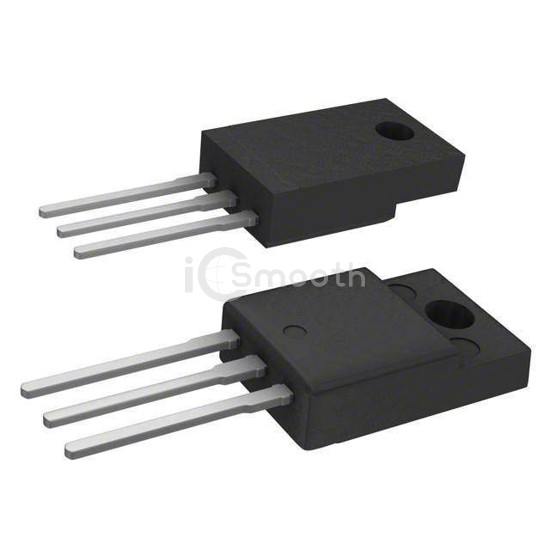

STGP10NB60SFP - STMicroelectronics - Transistors - IGBTs - Single
REF: STGP10NB60SFP STMicroelectronics
STGP10NB60SFP

STMicroelectronics

IGBT 600V 23A 25W TO220

STGP10NB60SFP is a Transistors - IGBTs - Single manufactured by STMicroelectronics. IGBT 600V 23A 25W TO220. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 150°C (TJ), package / case TO-220-3 Full Pack, current - collector (ic) (max) 23 A.

Datasheet Request a Quote

In Stock: 8,337

Specifications

17 parameters
Product StatusObsolete
IGBT Type-
Voltage - Collector Emitter Breakdown (Max)600 V
Current - Collector (Ic) (Max)23 A
Current - Collector Pulsed (Icm)80 A
Vce(on) (Max) @ Vge, Ic1.75V @ 15V, 10A
Power - Max25 W
Switching Energy600µJ (on), 5mJ (off)
Input TypeStandard
Gate Charge33 nC
Td (on/off) @ 25°C700ns/1.2µs
Test Condition480V, 10A, 1kOhm, 15V
Reverse Recovery Time (trr)-
Operating Temperature-55°C ~ 150°C (TJ)
Mounting TypeThrough Hole
Package / CaseTO-220-3 Full Pack
Supplier Device PackageTO-220FP
