STGFW80V60F

In Stock: 193
STGFW80V60F - STMicroelectronics - Transistors - IGBTs - Single
REF: STGFW80V60F STMicroelectronics
STGFW80V60F

STMicroelectronics

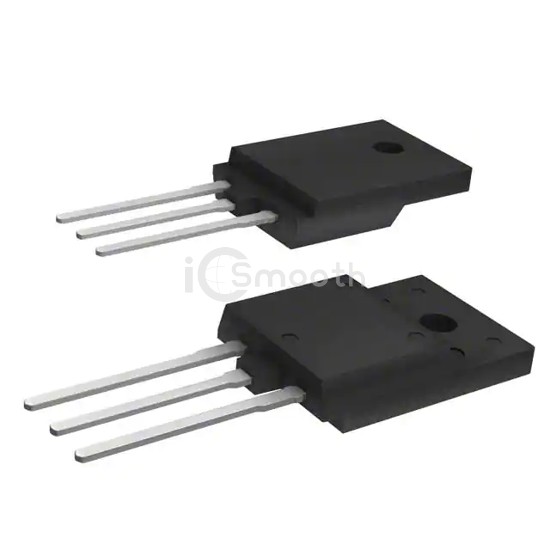

IGBT 600V 120A 79W TO-3PF

STGFW80V60F is a Transistors - IGBTs - Single manufactured by STMicroelectronics. IGBT 600V 120A 79W TO-3PF. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 175°C (TJ), package / case TO-3P-3 Full Pack, current - collector (ic) (max) 120 A.

Datasheet Request a Quote

In Stock: 193

Specifications

17 parameters
Product StatusObsolete
IGBT TypeTrench Field Stop
Voltage - Collector Emitter Breakdown (Max)600 V
Current - Collector (Ic) (Max)120 A
Current - Collector Pulsed (Icm)240 A
Vce(on) (Max) @ Vge, Ic2.3V @ 15V, 80A
Power - Max79 W
Switching Energy1.8mJ (on), 1mJ (off)
Input TypeStandard
Gate Charge448 nC
Td (on/off) @ 25°C60ns/220ns
Test Condition400V, 80A, 10Ohm, 15V
Reverse Recovery Time (trr)-
Operating Temperature-55°C ~ 175°C (TJ)
Mounting TypeThrough Hole
Package / CaseTO-3P-3 Full Pack
Supplier Device PackageTO-3PF
