STGFW40V60F

In Stock: 236
STGFW40V60F - STMicroelectronics - Transistors - IGBTs - Single
REF: STGFW40V60F STMicroelectronics
STGFW40V60F

STMicroelectronics

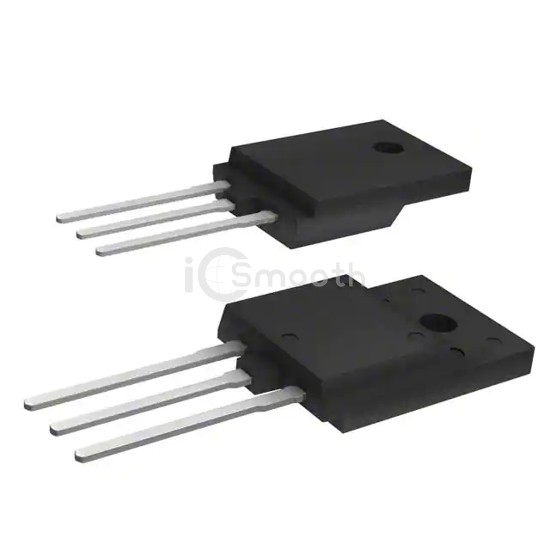

IGBT 600V 80A 62.5W TO-3PF

STGFW40V60F is a Transistors - IGBTs - Single manufactured by STMicroelectronics. IGBT 600V 80A 62.5W TO-3PF. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 175°C (TJ), package / case TO-3P-3 Full Pack, current - collector (ic) (max) 80 A.

Datasheet Request a Quote

In Stock: 236

Specifications

17 parameters
Product StatusObsolete
IGBT TypeTrench Field Stop
Voltage - Collector Emitter Breakdown (Max)600 V
Current - Collector (Ic) (Max)80 A
Current - Collector Pulsed (Icm)160 A
Vce(on) (Max) @ Vge, Ic2.3V @ 15V, 40A
Power - Max62.5 W
Switching Energy456µJ (on), 411µJ (off)
Input TypeStandard
Gate Charge226 nC
Td (on/off) @ 25°C52ns/208ns
Test Condition400V, 40A, 10Ohm, 15V
Reverse Recovery Time (trr)-
Operating Temperature-55°C ~ 175°C (TJ)
Mounting TypeThrough Hole
Package / CaseTO-3P-3 Full Pack
Supplier Device PackageTO-3PF
