STGFW40V60DF

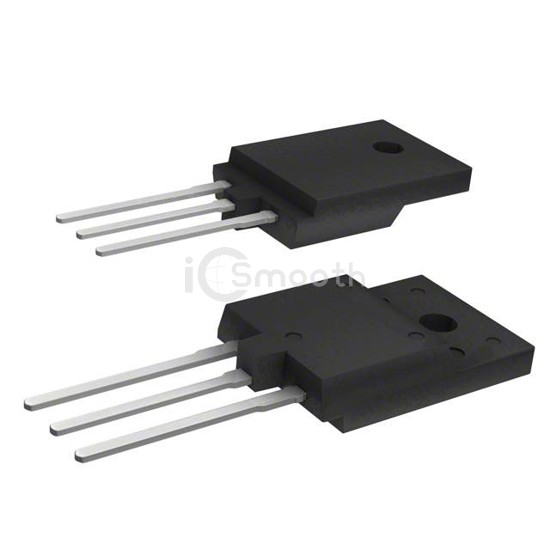

IGBT 600V 80A 62.5W TO-3PF

STGFW40V60DF is a Transistors - IGBTs - Single manufactured by STMicroelectronics. IGBT 600V 80A 62.5W TO-3PF. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 175°C (TJ), package / case TO-3PFM, SC-93-3, current - collector (ic) (max) 80 A.

Datasheet Request a Quote

In Stock: 7,881

Specifications

17 parameters

Product Status	Active
IGBT Type	Trench Field Stop
Voltage - Collector Emitter Breakdown (Max)	600 V
Current - Collector (Ic) (Max)	80 A
Current - Collector Pulsed (Icm)	160 A
Vce(on) (Max) @ Vge, Ic	2.3V @ 15V, 40A
Power - Max	62.5 W
Switching Energy	456µJ (on), 411µJ (off)
Input Type	Standard

Gate Charge	226 nC
Td (on/off) @ 25°C	52ns/208ns
Test Condition	400V, 40A, 10Ohm, 15V
Reverse Recovery Time (trr)	41 ns
Operating Temperature	-55°C ~ 175°C (TJ)
Mounting Type	Through Hole
Package / Case	TO-3PFM, SC-93-3
Supplier Device Package	TO-3PF-3
