STGFW40H65FB

In Stock: 37

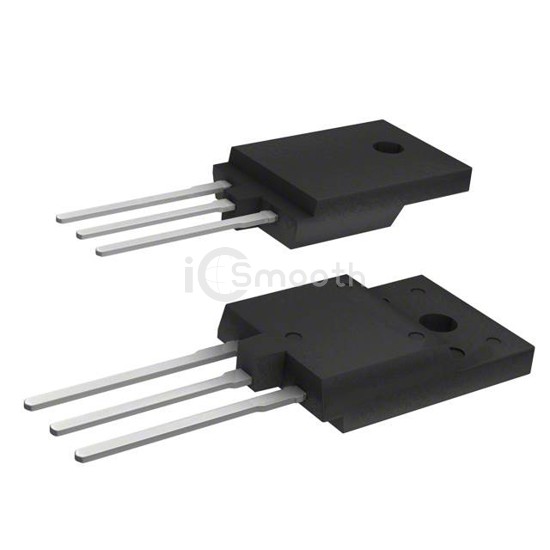

STGFW40H65FB - STMicroelectronics - Transistors - IGBTs - Single
REF: STGFW40H65FB STMicroelectronics
STGFW40H65FB

STMicroelectronics

IGBT HB 650V 40A ISOWATT218

STGFW40H65FB is a Transistors - IGBTs - Single manufactured by STMicroelectronics. IGBT HB 650V 40A ISOWATT218. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 175°C (TJ), package / case TO-3P-3 Full Pack, current - collector (ic) (max) 80 A.

Datasheet Request a Quote

In Stock: 37

Specifications

17 parameters
Product StatusActive
IGBT TypeTrench Field Stop
Voltage - Collector Emitter Breakdown (Max)650 V
Current - Collector (Ic) (Max)80 A
Current - Collector Pulsed (Icm)160 A
Vce(on) (Max) @ Vge, Ic2V @ 15V, 40A
Power - Max62.5 W
Switching Energy498µJ (on), 363µJ (off)
Input TypeStandard
Gate Charge210 nC
Td (on/off) @ 25°C40ns/142ns
Test Condition400V, 40A, 5Ohm, 15V
Reverse Recovery Time (trr)-
Operating Temperature-55°C ~ 175°C (TJ)
Mounting TypeThrough Hole
Package / CaseTO-3P-3 Full Pack
Supplier Device PackageTO-3PF-3
