STGFW30V60DF - STMicroelectronics - Transistors - IGBTs - Single
REF: STGFW30V60DF STMicroelectronics
STGFW30V60DF

STMicroelectronics

IGBT 600V 60A 58W TO-3PF

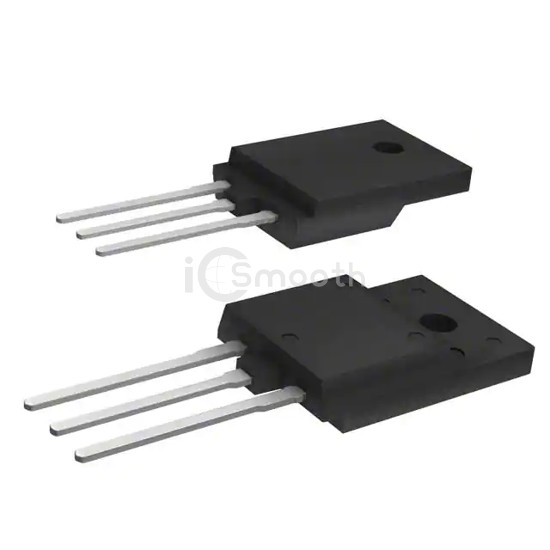

STGFW30V60DF is a Transistors - IGBTs - Single manufactured by STMicroelectronics. IGBT 600V 60A 58W TO-3PF. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 175°C (TJ), package / case TO-3P-3 Full Pack, current - collector (ic) (max) 60 A.

Datasheet Request a Quote

In Stock: 4,981

Specifications

17 parameters
Product StatusObsolete
IGBT TypeTrench Field Stop
Voltage - Collector Emitter Breakdown (Max)600 V
Current - Collector (Ic) (Max)60 A
Current - Collector Pulsed (Icm)120 A
Vce(on) (Max) @ Vge, Ic2.3V @ 15V, 30A
Power - Max58 W
Switching Energy383µJ (on), 233µJ (off)
Input TypeStandard
Gate Charge163 nC
Td (on/off) @ 25°C45ns/189ns
Test Condition400V, 30A, 10Ohm, 15V
Reverse Recovery Time (trr)53 ns
Operating Temperature-55°C ~ 175°C (TJ)
Mounting TypeThrough Hole
Package / CaseTO-3P-3 Full Pack
Supplier Device PackageTO-3PF
