STGFW30H65FB

In Stock: 4,368

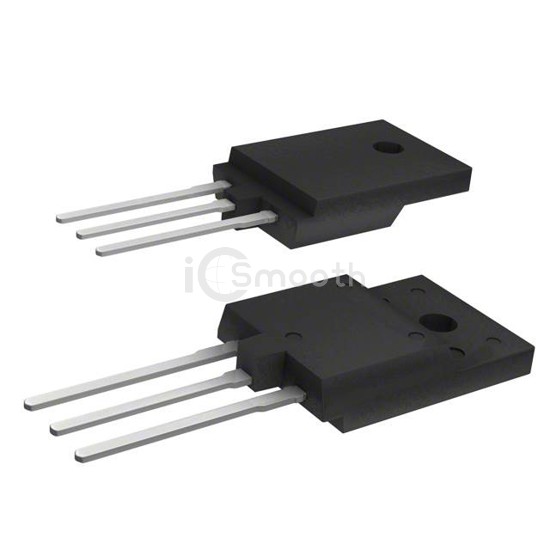

STGFW30H65FB - STMicroelectronics - Transistors - IGBTs - Single
REF: STGFW30H65FB STMicroelectronics
STGFW30H65FB

STMicroelectronics

IGBT 650V 60A 58W TO3PF

STGFW30H65FB is a Transistors - IGBTs - Single manufactured by STMicroelectronics. IGBT 650V 60A 58W TO3PF. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 175°C (TJ), package / case TO-3PFM, SC-93-3, current - collector (ic) (max) 60 A.

Datasheet Request a Quote

In Stock: 4,368

Specifications

17 parameters
Product StatusObsolete
IGBT TypeTrench Field Stop
Voltage - Collector Emitter Breakdown (Max)650 V
Current - Collector (Ic) (Max)60 A
Current - Collector Pulsed (Icm)120 A
Vce(on) (Max) @ Vge, Ic2V @ 15V, 30A
Power - Max58 W
Switching Energy151µJ (on), 293µJ (off)
Input TypeStandard
Gate Charge149 nC
Td (on/off) @ 25°C37ns/146ns
Test Condition400V, 30A, 10Ohm, 15V
Reverse Recovery Time (trr)-
Operating Temperature-55°C ~ 175°C (TJ)
Mounting TypeThrough Hole
Package / CaseTO-3PFM, SC-93-3
Supplier Device PackageTO-3PF-3
