STGFW20H65FB

In Stock: 215
STGFW20H65FB - STMicroelectronics - Transistors - IGBTs - Single
REF: STGFW20H65FB STMicroelectronics
STGFW20H65FB

STMicroelectronics

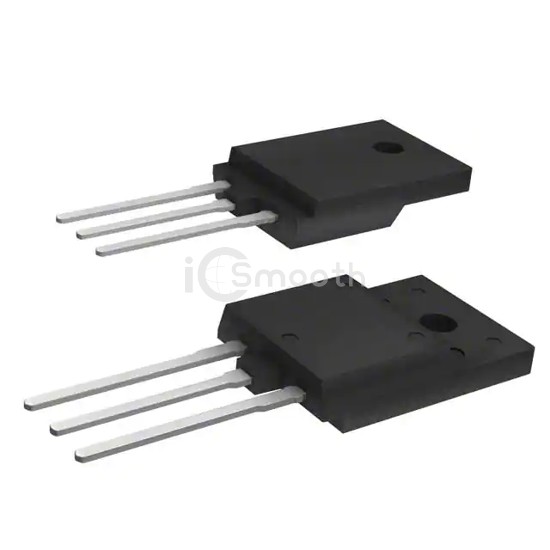

IGBT 650V 40A 52W TO3PF

STGFW20H65FB is a Transistors - IGBTs - Single manufactured by STMicroelectronics. IGBT 650V 40A 52W TO3PF. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 175°C (TJ), package / case TO-3PFM, SC-93-3, current - collector (ic) (max) 40 A.

Datasheet Request a Quote

In Stock: 215

Specifications

17 parameters
Product StatusObsolete
IGBT TypeTrench Field Stop
Voltage - Collector Emitter Breakdown (Max)650 V
Current - Collector (Ic) (Max)40 A
Current - Collector Pulsed (Icm)80 A
Vce(on) (Max) @ Vge, Ic2V @ 15V, 20A
Power - Max52 W
Switching Energy77µJ (on), 170µJ (off)
Input TypeStandard
Gate Charge120 nC
Td (on/off) @ 25°C30ns/139ns
Test Condition400V, 20A, 10Ohm, 15V
Reverse Recovery Time (trr)-
Operating Temperature-55°C ~ 175°C (TJ)
Mounting TypeThrough Hole
Package / CaseTO-3PFM, SC-93-3
Supplier Device PackageTO-3PF
