STGFL6NC60D

In Stock: 492
STGFL6NC60D - STMicroelectronics - Transistors - IGBTs - Single
REF: STGFL6NC60D STMicroelectronics
STGFL6NC60D

STMicroelectronics

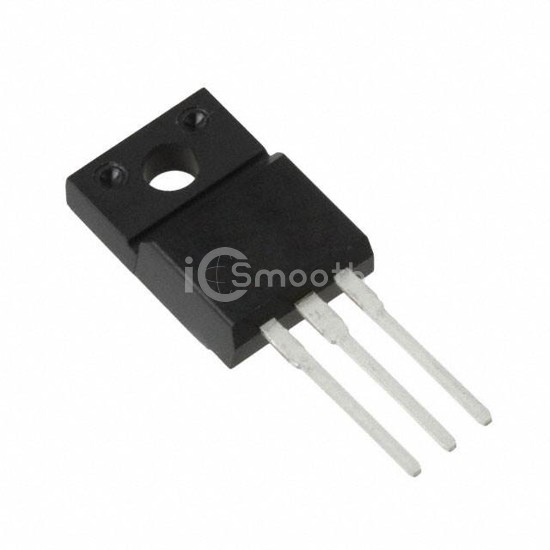

IGBT 600V 7A 22W TO220FP

STGFL6NC60D is a Transistors - IGBTs - Single manufactured by STMicroelectronics. IGBT 600V 7A 22W TO220FP. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 150°C (TJ), package / case TO-220-3 Full Pack, current - collector (ic) (max) 7 A.

Datasheet Request a Quote

In Stock: 492

Specifications

17 parameters
Product StatusObsolete
IGBT Type-
Voltage - Collector Emitter Breakdown (Max)600 V
Current - Collector (Ic) (Max)7 A
Current - Collector Pulsed (Icm)25 A
Vce(on) (Max) @ Vge, Ic2.9V @ 15V, 3A
Power - Max22 W
Switching Energy46.5µJ (on), 23.5µJ (off)
Input TypeStandard
Gate Charge12 nC
Td (on/off) @ 25°C6.7ns/46ns
Test Condition390V, 3A, 10Ohm, 15V
Reverse Recovery Time (trr)30 ns
Operating Temperature-55°C ~ 150°C (TJ)
Mounting TypeThrough Hole
Package / CaseTO-220-3 Full Pack
Supplier Device PackageTO-220FP
