STGF7NC60HD

In Stock: 2,345

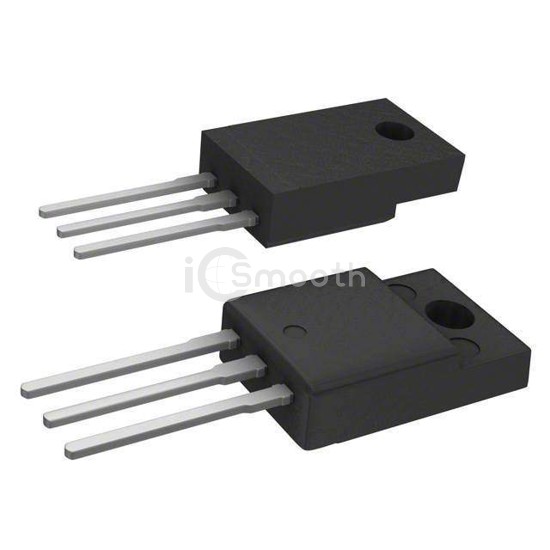

STGF7NC60HD - STMicroelectronics - Transistors - IGBTs - Single
REF: STGF7NC60HD STMicroelectronics
STGF7NC60HD

STMicroelectronics

IGBT 600V 10A 25W TO220FP

STGF7NC60HD is a Transistors - IGBTs - Single manufactured by STMicroelectronics. IGBT 600V 10A 25W TO220FP. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 150°C (TJ), package / case TO-220-3 Full Pack, current - collector (ic) (max) 10 A.

Datasheet Request a Quote

In Stock: 2,345

Specifications

17 parameters
Product StatusObsolete
IGBT Type-
Voltage - Collector Emitter Breakdown (Max)600 V
Current - Collector (Ic) (Max)10 A
Current - Collector Pulsed (Icm)50 A
Vce(on) (Max) @ Vge, Ic2.5V @ 15V, 7A
Power - Max25 W
Switching Energy95µJ (on), 115µJ (off)
Input TypeStandard
Gate Charge35 nC
Td (on/off) @ 25°C18.5ns/72ns
Test Condition390V, 7A, 10Ohm, 15V
Reverse Recovery Time (trr)37 ns
Operating Temperature-55°C ~ 150°C (TJ)
Mounting TypeThrough Hole
Package / CaseTO-220-3 Full Pack
Supplier Device PackageTO-220FP
