STGF7NB60SL - STMicroelectronics - Transistors - IGBTs - Single
REF: STGF7NB60SL STMicroelectronics
STGF7NB60SL

STMicroelectronics

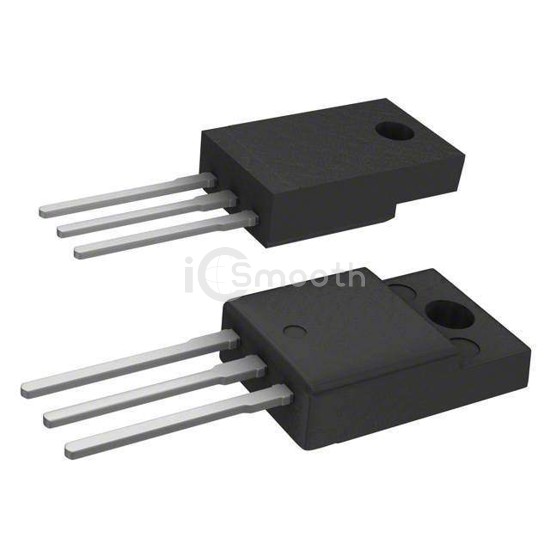

IGBT 600V 15A 25W TO220FP

STGF7NB60SL is a Transistors - IGBTs - Single manufactured by STMicroelectronics. IGBT 600V 15A 25W TO220FP. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 150°C (TJ), package / case TO-220-3 Full Pack, current - collector (ic) (max) 15 A.

Datasheet Request a Quote

In Stock: 3,361

Specifications

17 parameters
Product StatusActive
IGBT Type-
Voltage - Collector Emitter Breakdown (Max)600 V
Current - Collector (Ic) (Max)15 A
Current - Collector Pulsed (Icm)20 A
Vce(on) (Max) @ Vge, Ic1.6V @ 4.5V, 7A
Power - Max25 W
Switching Energy4.1mJ (off)
Input TypeStandard
Gate Charge16 nC
Td (on/off) @ 25°C1.1µs/5.2µs
Test Condition480V, 7A, 1kOhm, 5V
Reverse Recovery Time (trr)-
Operating Temperature-55°C ~ 150°C (TJ)
Mounting TypeThrough Hole
Package / CaseTO-220-3 Full Pack
Supplier Device PackageTO-220FP
