STGF7H60DF

In Stock: 5,606
STGF7H60DF - STMicroelectronics - Transistors - IGBTs - Single
REF: STGF7H60DF STMicroelectronics
STGF7H60DF

STMicroelectronics

IGBT 600V 14A 24W TO-220FP

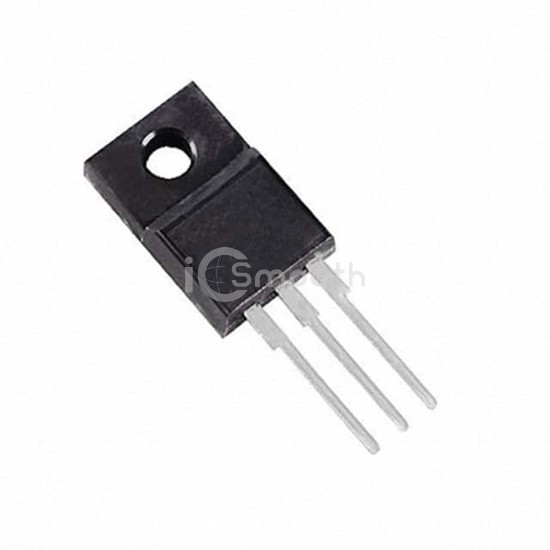

STGF7H60DF is a Transistors - IGBTs - Single manufactured by STMicroelectronics. IGBT 600V 14A 24W TO-220FP. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 175°C (TJ), package / case TO-220-3 Full Pack, current - collector (ic) (max) 14 A.

Datasheet Request a Quote

In Stock: 5,606

Specifications

17 parameters
Product StatusActive
IGBT TypeTrench Field Stop
Voltage - Collector Emitter Breakdown (Max)600 V
Current - Collector (Ic) (Max)14 A
Current - Collector Pulsed (Icm)28 A
Vce(on) (Max) @ Vge, Ic1.95V @ 15V, 7A
Power - Max24 W
Switching Energy99µJ (on), 100µJ (off)
Input TypeStandard
Gate Charge46 nC
Td (on/off) @ 25°C30ns/160ns
Test Condition400V, 7A, 47Ohm, 15V
Reverse Recovery Time (trr)136 ns
Operating Temperature-55°C ~ 175°C (TJ)
Mounting TypeThrough Hole
Package / CaseTO-220-3 Full Pack
Supplier Device PackageTO-220FP
