STGF30NC60S

In Stock: 8,047

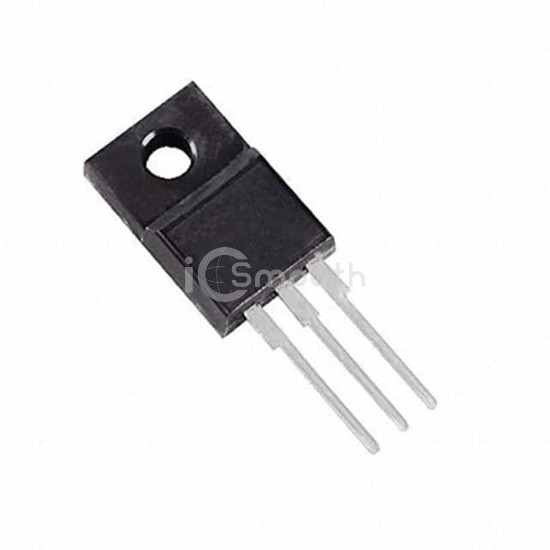

STGF30NC60S - STMicroelectronics - Transistors - IGBTs - Single
REF: STGF30NC60S STMicroelectronics
STGF30NC60S

STMicroelectronics

IGBT 600V 22A 40W TO220FP

STGF30NC60S is a Transistors - IGBTs - Single manufactured by STMicroelectronics. IGBT 600V 22A 40W TO220FP. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 150°C (TJ), package / case TO-220-3 Full Pack, current - collector (ic) (max) 22 A.

Datasheet Request a Quote

In Stock: 8,047

Specifications

17 parameters
Product StatusObsolete
IGBT Type-
Voltage - Collector Emitter Breakdown (Max)600 V
Current - Collector (Ic) (Max)22 A
Current - Collector Pulsed (Icm)150 A
Vce(on) (Max) @ Vge, Ic1.9V @ 15V, 20A
Power - Max40 W
Switching Energy300µJ (on), 1.28mJ (off)
Input TypeStandard
Gate Charge96 nC
Td (on/off) @ 25°C21.5ns/180ns
Test Condition480V, 20A, 10Ohm, 15V
Reverse Recovery Time (trr)-
Operating Temperature-55°C ~ 150°C (TJ)
Mounting TypeThrough Hole
Package / CaseTO-220-3 Full Pack
Supplier Device PackageTO-220FP
