STGF30H60DF

In Stock: 1
STGF30H60DF - STMicroelectronics - Transistors - IGBTs - Single
REF: STGF30H60DF STMicroelectronics

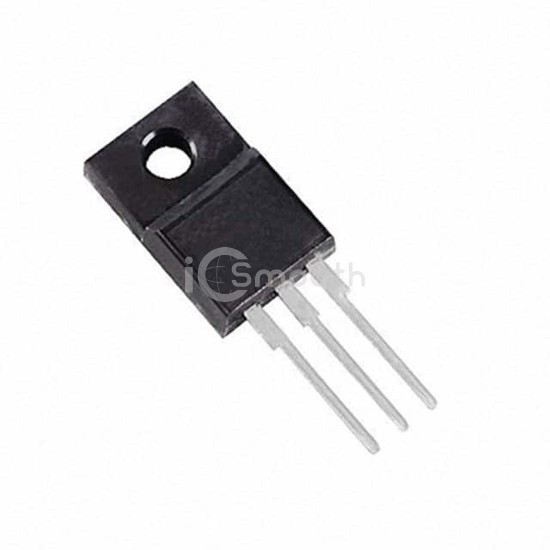

STGF30H60DF

STMicroelectronics

IGBT 600V 60A 37W TO220FP

STGF30H60DF is a Transistors - IGBTs - Single manufactured by STMicroelectronics. IGBT 600V 60A 37W TO220FP. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 175°C (TJ), package / case TO-220-3 Full Pack, current - collector (ic) (max) 60 A.

Datasheet Request a Quote

In Stock: 1

Specifications

17 parameters
Product StatusObsolete
IGBT TypeTrench Field Stop
Voltage - Collector Emitter Breakdown (Max)600 V
Current - Collector (Ic) (Max)60 A
Current - Collector Pulsed (Icm)120 A
Vce(on) (Max) @ Vge, Ic2.4V @ 15V, 30A
Power - Max37 W
Switching Energy350µJ (on), 400µJ (off)
Input TypeStandard
Gate Charge105 nC
Td (on/off) @ 25°C50ns/160ns
Test Condition400V, 30A, 10Ohm, 15V
Reverse Recovery Time (trr)110 ns
Operating Temperature-40°C ~ 175°C (TJ)
Mounting TypeThrough Hole
Package / CaseTO-220-3 Full Pack
Supplier Device PackageTO-220FP
