STGF20NB60S

In Stock: 9,542

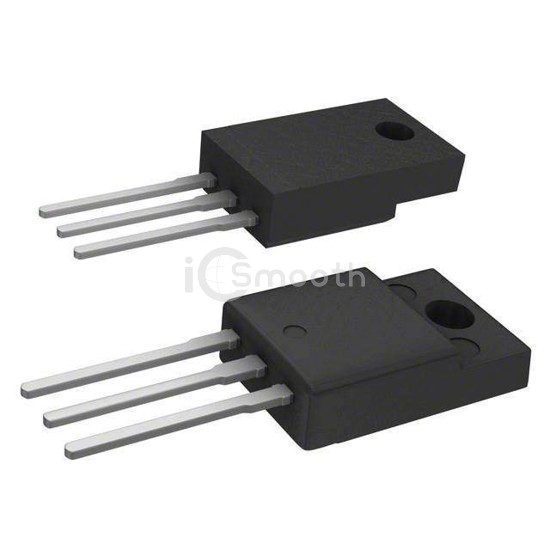

STGF20NB60S - STMicroelectronics - Transistors - IGBTs - Single
REF: STGF20NB60S STMicroelectronics
STGF20NB60S

STMicroelectronics

IGBT 600V 24A 40W TO220FP

STGF20NB60S is a Transistors - IGBTs - Single manufactured by STMicroelectronics. IGBT 600V 24A 40W TO220FP. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 150°C (TJ), package / case TO-220-3 Full Pack, current - collector (ic) (max) 24 A.

Datasheet Request a Quote

In Stock: 9,542

Specifications

17 parameters
Product StatusObsolete
IGBT Type-
Voltage - Collector Emitter Breakdown (Max)600 V
Current - Collector (Ic) (Max)24 A
Current - Collector Pulsed (Icm)70 A
Vce(on) (Max) @ Vge, Ic1.7V @ 15V, 20A
Power - Max40 W
Switching Energy840µJ (on), 7.4mJ (off)
Input TypeStandard
Gate Charge83 nC
Td (on/off) @ 25°C92ns/1.1µs
Test Condition480V, 20A, 100Ohm, 15V
Reverse Recovery Time (trr)-
Operating Temperature-55°C ~ 150°C (TJ)
Mounting TypeThrough Hole
Package / CaseTO-220-3 Full Pack
Supplier Device PackageTO-220FP
