STGF12NB60KD

In Stock: 7,835
STGF12NB60KD - STMicroelectronics - Transistors - IGBTs - Single
REF: STGF12NB60KD STMicroelectronics
STGF12NB60KD

STMicroelectronics

IGBT 600V 14A 30W TO220FP

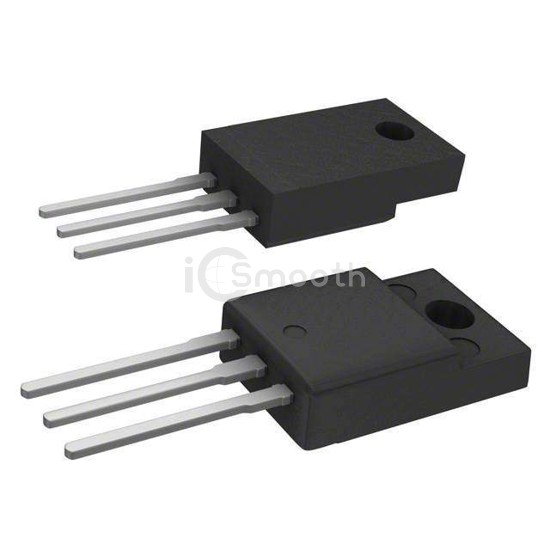

STGF12NB60KD is a Transistors - IGBTs - Single manufactured by STMicroelectronics. IGBT 600V 14A 30W TO220FP. Key specifications: mounting type Through Hole, package / case TO-220-3 Full Pack, current - collector (ic) (max) 14 A, power - max 30 W.

Datasheet Request a Quote

In Stock: 7,835

Specifications

17 parameters
Product StatusObsolete
IGBT Type-
Voltage - Collector Emitter Breakdown (Max)600 V
Current - Collector (Ic) (Max)14 A
Current - Collector Pulsed (Icm)60 A
Vce(on) (Max) @ Vge, Ic2.8V @ 15V, 12A
Power - Max30 W
Switching Energy152µJ (on), 258µJ (off)
Input TypeStandard
Gate Charge54 nC
Td (on/off) @ 25°C25ns/96ns
Test Condition480V, 12A, 10Ohm, 15V
Reverse Recovery Time (trr)37 ns
Operating Temperature-
Mounting TypeThrough Hole
Package / CaseTO-220-3 Full Pack
Supplier Device PackageTO-220FP
