STGF10NC60SD

In Stock: 4,601
STGF10NC60SD - STMicroelectronics - Transistors - IGBTs - Single
REF: STGF10NC60SD STMicroelectronics
STGF10NC60SD

STMicroelectronics

IGBT 600V 10A 25W TP220FP

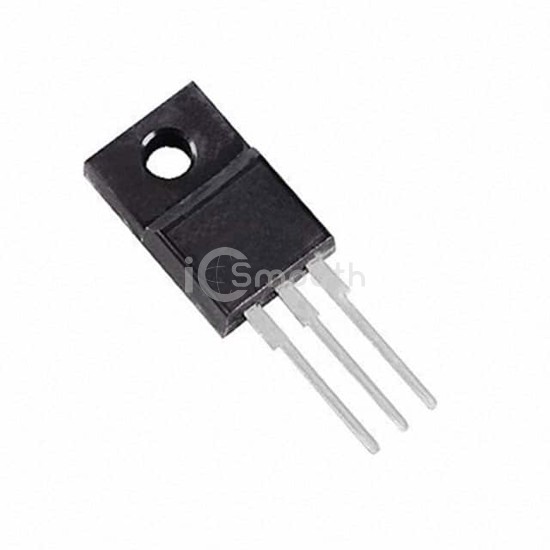

STGF10NC60SD is a Transistors - IGBTs - Single manufactured by STMicroelectronics. IGBT 600V 10A 25W TP220FP. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 150°C (TJ), package / case TO-220-3 Full Pack, current - collector (ic) (max) 10 A.

Datasheet Request a Quote

In Stock: 4,601

Specifications

17 parameters
Product StatusObsolete
IGBT Type-
Voltage - Collector Emitter Breakdown (Max)600 V
Current - Collector (Ic) (Max)10 A
Current - Collector Pulsed (Icm)25 A
Vce(on) (Max) @ Vge, Ic1.65V @ 15V, 5A
Power - Max25 W
Switching Energy60µJ (on), 340µJ (off)
Input TypeStandard
Gate Charge18 nC
Td (on/off) @ 25°C19ns/160ns
Test Condition390V, 5A, 10Ohm, 15V
Reverse Recovery Time (trr)22 ns
Operating Temperature-55°C ~ 150°C (TJ)
Mounting TypeThrough Hole
Package / CaseTO-220-3 Full Pack
Supplier Device PackageTO-220FP
