STGF10NC60HD

In Stock: 9,895

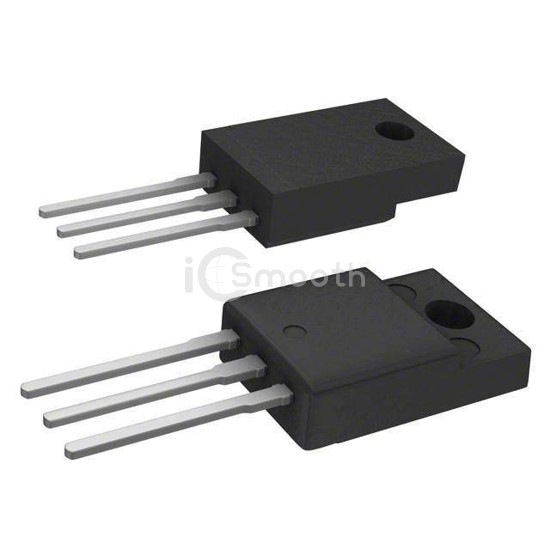

STGF10NC60HD - STMicroelectronics - Transistors - IGBTs - Single
REF: STGF10NC60HD STMicroelectronics
STGF10NC60HD

STMicroelectronics

IGBT 600V 9A 24W TO220FP

STGF10NC60HD is a Transistors - IGBTs - Single manufactured by STMicroelectronics. IGBT 600V 9A 24W TO220FP. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 150°C (TJ), package / case TO-220-3 Full Pack, current - collector (ic) (max) 9 A.

Datasheet Request a Quote

In Stock: 9,895

Specifications

17 parameters
Product StatusObsolete
IGBT Type-
Voltage - Collector Emitter Breakdown (Max)600 V
Current - Collector (Ic) (Max)9 A
Current - Collector Pulsed (Icm)30 A
Vce(on) (Max) @ Vge, Ic2.5V @ 15V, 5A
Power - Max24 W
Switching Energy31.8µJ (on), 95µJ (off)
Input TypeStandard
Gate Charge19.2 nC
Td (on/off) @ 25°C14.2ns/72ns
Test Condition390V, 5A, 10Ohm, 15V
Reverse Recovery Time (trr)22 ns
Operating Temperature-55°C ~ 150°C (TJ)
Mounting TypeThrough Hole
Package / CaseTO-220-3 Full Pack
Supplier Device PackageTO-220FP
