STGF10H60DF

In Stock: 5,454
STGF10H60DF - STMicroelectronics - Transistors - IGBTs - Single
REF: STGF10H60DF STMicroelectronics
STGF10H60DF

STMicroelectronics

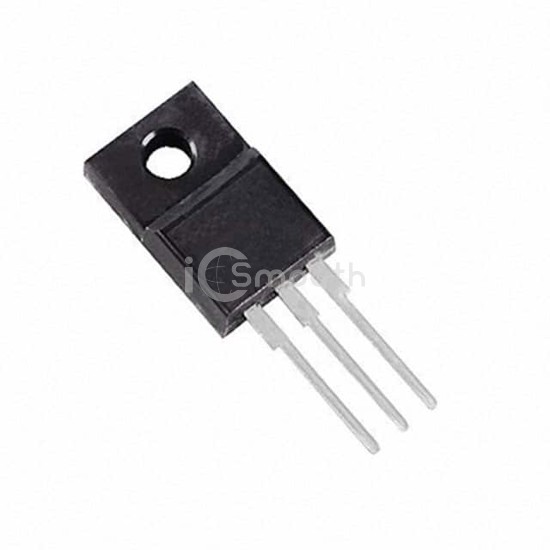

IGBT 600V 20A 30W TO220FP

STGF10H60DF is a Transistors - IGBTs - Single manufactured by STMicroelectronics. IGBT 600V 20A 30W TO220FP. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 175°C (TJ), package / case TO-220-3 Full Pack, current - collector (ic) (max) 20 A.

Datasheet Request a Quote

In Stock: 5,454

Specifications

17 parameters
Product StatusActive
IGBT TypeTrench Field Stop
Voltage - Collector Emitter Breakdown (Max)600 V
Current - Collector (Ic) (Max)20 A
Current - Collector Pulsed (Icm)40 A
Vce(on) (Max) @ Vge, Ic1.95V @ 15V, 10A
Power - Max30 W
Switching Energy83µJ (on), 140µJ (off)
Input TypeStandard
Gate Charge57 nC
Td (on/off) @ 25°C19.5ns/103ns
Test Condition400V, 10A, 10Ohm, 15V
Reverse Recovery Time (trr)107 ns
Operating Temperature-55°C ~ 175°C (TJ)
Mounting TypeThrough Hole
Package / CaseTO-220-3 Full Pack
Supplier Device PackageTO-220FP
