Name: STGE50NC60WD
Brand: STMicroelectronics
SKU: STGE50NC60WD
Availability: InStock

REF: STGE50NC60WD STMicroelectronics

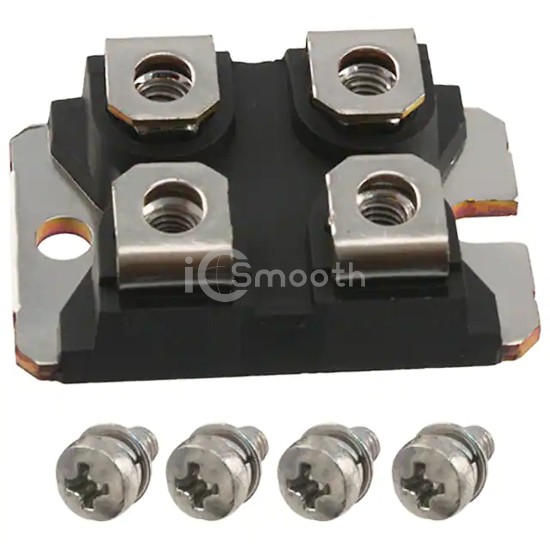

STGE50NC60WD

IGBT MOD 600V 100A 260W ISOTOP

STGE50NC60WD is a Transistors - IGBTs - Modules manufactured by STMicroelectronics. IGBT MOD 600V 100A 260W ISOTOP. Key specifications: mounting type Chassis Mount, operating temperature -55°C ~ 150°C (TJ), package / case SOT-227-4, miniBLOC, current - collector (ic) (max) 100 A.

Datasheet Request a Quote

In Stock: 5,109

Specifications

15 parameters

Product Status	Obsolete
IGBT Type	-
Configuration	Single
Voltage - Collector Emitter Breakdown (Max)	600 V
Current - Collector (Ic) (Max)	100 A
Power - Max	260 W
Vce(on) (Max) @ Vge, Ic	2.6V @ 15V, 40A
Current - Collector Cutoff (Max)	500 µA

Input Capacitance (Cies) @ Vce	4.7 nF @ 25 V
Input	Standard
NTC Thermistor	No
Operating Temperature	-55°C ~ 150°C (TJ)
Mounting Type	Chassis Mount
Package / Case	SOT-227-4, miniBLOC
Supplier Device Package	ISOTOP
