STGD7NB60ST4

In Stock: 5,839

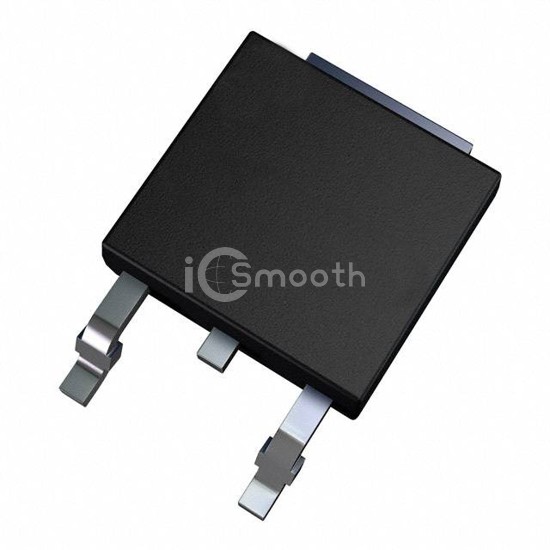

STGD7NB60ST4 - STMicroelectronics - Transistors - IGBTs - Single
REF: STGD7NB60ST4 STMicroelectronics
STGD7NB60ST4

STMicroelectronics

IGBT 600V 15A 55W DPAK

STGD7NB60ST4 is a Transistors - IGBTs - Single manufactured by STMicroelectronics. IGBT 600V 15A 55W DPAK. Key specifications: mounting type Surface Mount, operating temperature 150°C (TJ), package / case TO-252-3, DPak (2 Leads + Tab), SC-63, current - collector (ic) (max) 15 A.

Datasheet Request a Quote

In Stock: 5,839

Specifications

17 parameters
Product StatusActive
IGBT Type-
Voltage - Collector Emitter Breakdown (Max)600 V
Current - Collector (Ic) (Max)15 A
Current - Collector Pulsed (Icm)60 A
Vce(on) (Max) @ Vge, Ic1.6V @ 15V, 7A
Power - Max55 W
Switching Energy3.5mJ (off)
Input TypeStandard
Gate Charge33 nC
Td (on/off) @ 25°C700ns/-
Test Condition480V, 7A, 1kOhm, 15V
Reverse Recovery Time (trr)-
Operating Temperature150°C (TJ)
Mounting TypeSurface Mount
Package / CaseTO-252-3, DPak (2 Leads + Tab), SC-63
Supplier Device PackageDPAK
