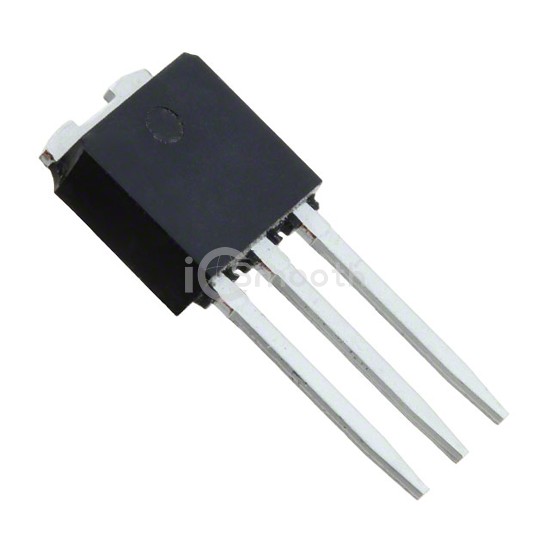

Name: STGD5NB120SZ-1
Brand: STMicroelectronics
SKU: STGD5NB120SZ-1
Availability: InStock

REF: STGD5NB120SZ-1 STMicroelectronics

STGD5NB120SZ-1

IGBT 1200V 10A 75W IPAK

STGD5NB120SZ-1 is a Transistors - IGBTs - Single manufactured by STMicroelectronics. IGBT 1200V 10A 75W IPAK. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 150°C (TJ), package / case TO-251-3 Short Leads, IPak, TO-251AA, current - collector (ic) (max) 10 A.

Datasheet Request a Quote

In Stock: 1,758

Specifications

17 parameters

Product Status	Obsolete
IGBT Type	-
Voltage - Collector Emitter Breakdown (Max)	1200 V
Current - Collector (Ic) (Max)	10 A
Current - Collector Pulsed (Icm)	10 A
Vce(on) (Max) @ Vge, Ic	2V @ 15V, 5A
Power - Max	75 W
Switching Energy	2.59mJ (on), 9mJ (off)
Input Type	Standard

Gate Charge	-
Td (on/off) @ 25°C	690ns/12.1µs
Test Condition	960V, 5A, 1kOhm, 15V
Reverse Recovery Time (trr)	-
Operating Temperature	-55°C ~ 150°C (TJ)
Mounting Type	Through Hole
Package / Case	TO-251-3 Short Leads, IPak, TO-251AA
Supplier Device Package	TO-251 (IPAK)
