STGD3NB60SDT4

In Stock: 5,874
STGD3NB60SDT4 - STMicroelectronics - Transistors - IGBTs - Single
REF: STGD3NB60SDT4 STMicroelectronics
STGD3NB60SDT4

STMicroelectronics

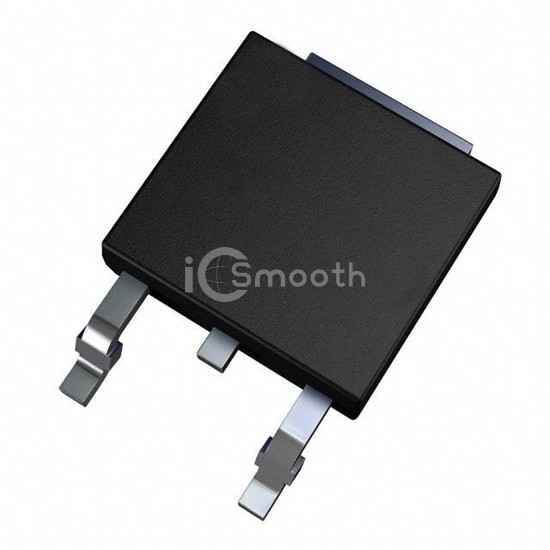

IGBT 600V 6A 48W DPAK

STGD3NB60SDT4 is a Transistors - IGBTs - Single manufactured by STMicroelectronics. IGBT 600V 6A 48W DPAK. Key specifications: mounting type Surface Mount, operating temperature 175°C (TJ), package / case TO-252-3, DPak (2 Leads + Tab), SC-63, current - collector (ic) (max) 6 A.

Datasheet Request a Quote

In Stock: 5,874

Specifications

17 parameters
Product StatusActive
IGBT Type-
Voltage - Collector Emitter Breakdown (Max)600 V
Current - Collector (Ic) (Max)6 A
Current - Collector Pulsed (Icm)25 A
Vce(on) (Max) @ Vge, Ic1.5V @ 15V, 3A
Power - Max48 W
Switching Energy1.15mJ (off)
Input TypeStandard
Gate Charge18 nC
Td (on/off) @ 25°C125µs/-
Test Condition480V, 3A, 1kOhm, 15V
Reverse Recovery Time (trr)1.7 µs
Operating Temperature175°C (TJ)
Mounting TypeSurface Mount
Package / CaseTO-252-3, DPak (2 Leads + Tab), SC-63
Supplier Device PackageDPAK
