Name: STGD3NB60SD-1
Brand: STMicroelectronics
SKU: STGD3NB60SD-1
Availability: InStock

REF: STGD3NB60SD-1 STMicroelectronics

STGD3NB60SD-1

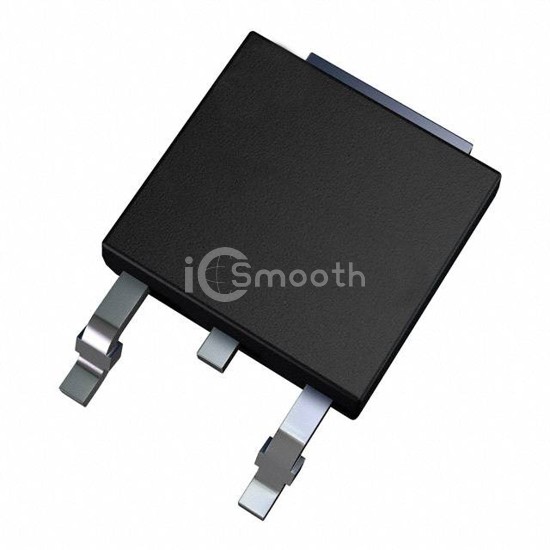

IGBT 600V 6A 48W DPAK

STGD3NB60SD-1 is a Transistors - IGBTs - Single manufactured by STMicroelectronics. IGBT 600V 6A 48W DPAK. Key specifications: mounting type Surface Mount, operating temperature 175°C (TJ), package / case TO-252-3, DPak (2 Leads + Tab), SC-63, current - collector (ic) (max) 6 A.

Datasheet Request a Quote

In Stock: 1,585

Specifications

17 parameters

Product Status	Obsolete
IGBT Type	-
Voltage - Collector Emitter Breakdown (Max)	600 V
Current - Collector (Ic) (Max)	6 A
Current - Collector Pulsed (Icm)	25 A
Vce(on) (Max) @ Vge, Ic	1.5V @ 15V, 3A
Power - Max	48 W
Switching Energy	1.1mJ (on), 1.15mJ (off)
Input Type	Standard

Gate Charge	18 nC
Td (on/off) @ 25°C	125µs/3.4µs
Test Condition	480V, 3A, 1kOhm, 15V
Reverse Recovery Time (trr)	1.7 µs
Operating Temperature	175°C (TJ)
Mounting Type	Surface Mount
Package / Case	TO-252-3, DPak (2 Leads + Tab), SC-63
Supplier Device Package	DPAK
