STGD3NB60FT4

In Stock: 1,957
STGD3NB60FT4 - STMicroelectronics - Transistors - IGBTs - Single
REF: STGD3NB60FT4 STMicroelectronics
STGD3NB60FT4

STMicroelectronics

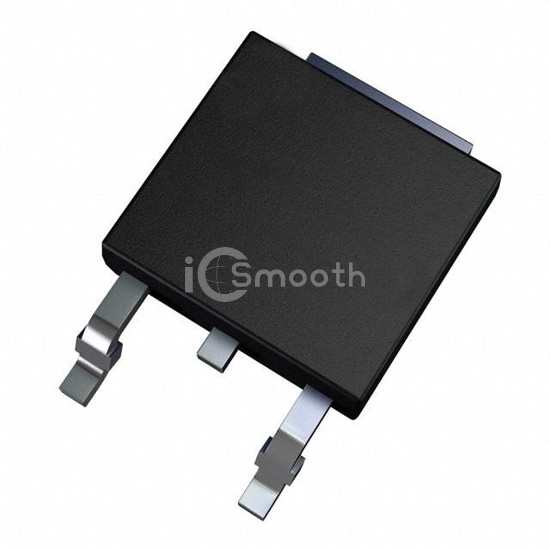

IGBT 600V 6A 60W DPAK

STGD3NB60FT4 is a Transistors - IGBTs - Single manufactured by STMicroelectronics. IGBT 600V 6A 60W DPAK. Key specifications: mounting type Surface Mount, operating temperature 150°C (TJ), package / case TO-252-3, DPak (2 Leads + Tab), SC-63, current - collector (ic) (max) 6 A.

Datasheet Request a Quote

In Stock: 1,957

Specifications

17 parameters
Product StatusObsolete
IGBT Type-
Voltage - Collector Emitter Breakdown (Max)600 V
Current - Collector (Ic) (Max)6 A
Current - Collector Pulsed (Icm)24 A
Vce(on) (Max) @ Vge, Ic2.4V @ 15V, 3A
Power - Max60 W
Switching Energy125µJ (off)
Input TypeStandard
Gate Charge16 nC
Td (on/off) @ 25°C12.5ns/105ns
Test Condition480V, 3A, 10Ohm, 15V
Reverse Recovery Time (trr)45 ns
Operating Temperature150°C (TJ)
Mounting TypeSurface Mount
Package / CaseTO-252-3, DPak (2 Leads + Tab), SC-63
Supplier Device PackageDPAK
