STGD19N40LZ

In Stock: 34
STGD19N40LZ - STMicroelectronics - Transistors - IGBTs - Single
REF: STGD19N40LZ STMicroelectronics
STGD19N40LZ

STMicroelectronics

IGBT 20V 40A DPAK

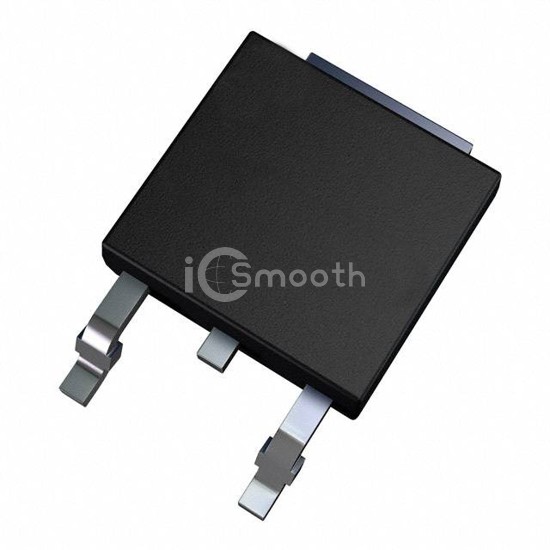

STGD19N40LZ is a Transistors - IGBTs - Single manufactured by STMicroelectronics. IGBT 20V 40A DPAK. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 175°C (TJ), package / case TO-252-3, DPak (2 Leads + Tab), SC-63, current - collector (ic) (max) 25 A.

Datasheet Request a Quote

In Stock: 34

Specifications

17 parameters
Product StatusActive
IGBT Type-
Voltage - Collector Emitter Breakdown (Max)390 V
Current - Collector (Ic) (Max)25 A
Current - Collector Pulsed (Icm)40 A
Vce(on) (Max) @ Vge, Ic1.5V @ 4.5V, 10A
Power - Max125 W
Switching Energy-
Input TypeLogic
Gate Charge17 nC
Td (on/off) @ 25°C650ns/13.5µs
Test Condition300V, 10A, 1kOhm, 5V
Reverse Recovery Time (trr)-
Operating Temperature-55°C ~ 175°C (TJ)
Mounting TypeSurface Mount
Package / CaseTO-252-3, DPak (2 Leads + Tab), SC-63
Supplier Device PackageDPAK
