STGD18N40LZT4

In Stock: 2,459
STGD18N40LZT4 - STMicroelectronics - Transistors - IGBTs - Single
REF: STGD18N40LZT4 STMicroelectronics
STGD18N40LZT4

STMicroelectronics

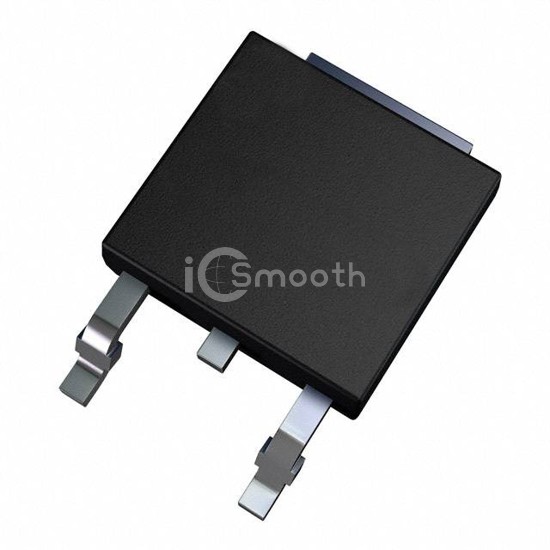

IGBT 420V 25A 125W DPAK

STGD18N40LZT4 is a Transistors - IGBTs - Single manufactured by STMicroelectronics. IGBT 420V 25A 125W DPAK. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 175°C (TJ), package / case TO-252-3, DPak (2 Leads + Tab), SC-63, current - collector (ic) (max) 25 A.

Datasheet Request a Quote

In Stock: 2,459

Specifications

17 parameters
Product StatusActive
IGBT Type-
Voltage - Collector Emitter Breakdown (Max)420 V
Current - Collector (Ic) (Max)25 A
Current - Collector Pulsed (Icm)40 A
Vce(on) (Max) @ Vge, Ic1.7V @ 4.5V, 10A
Power - Max125 W
Switching Energy-
Input TypeLogic
Gate Charge29 nC
Td (on/off) @ 25°C650ns/13.5µs
Test Condition300V, 10A, 5V
Reverse Recovery Time (trr)-
Operating Temperature-55°C ~ 175°C (TJ)
Mounting TypeSurface Mount
Package / CaseTO-252-3, DPak (2 Leads + Tab), SC-63
Supplier Device PackageDPAK
