Name: STGD18N40LZ-1
Brand: STMicroelectronics
SKU: STGD18N40LZ-1
Availability: InStock

REF: STGD18N40LZ-1 STMicroelectronics

STGD18N40LZ-1

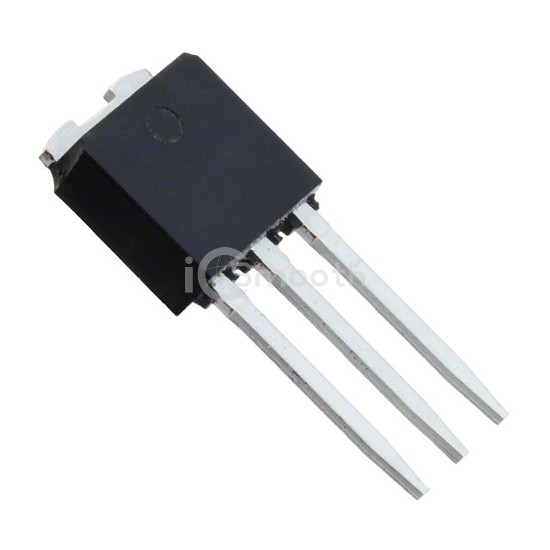

IGBT 420V 25A 125W IPAK

STGD18N40LZ-1 is a Transistors - IGBTs - Single manufactured by STMicroelectronics. IGBT 420V 25A 125W IPAK. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 175°C (TJ), package / case TO-251-3 Short Leads, IPak, TO-251AA, current - collector (ic) (max) 25 A.

Datasheet Request a Quote

In Stock: 9,085

Specifications

17 parameters

Product Status	Obsolete
IGBT Type	-
Voltage - Collector Emitter Breakdown (Max)	420 V
Current - Collector (Ic) (Max)	25 A
Current - Collector Pulsed (Icm)	40 A
Vce(on) (Max) @ Vge, Ic	1.7V @ 4.5V, 10A
Power - Max	125 W
Switching Energy	-
Input Type	Logic

Gate Charge	29 nC
Td (on/off) @ 25°C	650ns/13.5µs
Test Condition	300V, 10A, 5V
Reverse Recovery Time (trr)	-
Operating Temperature	-55°C ~ 175°C (TJ)
Mounting Type	Through Hole
Package / Case	TO-251-3 Short Leads, IPak, TO-251AA
Supplier Device Package	I-PAK
