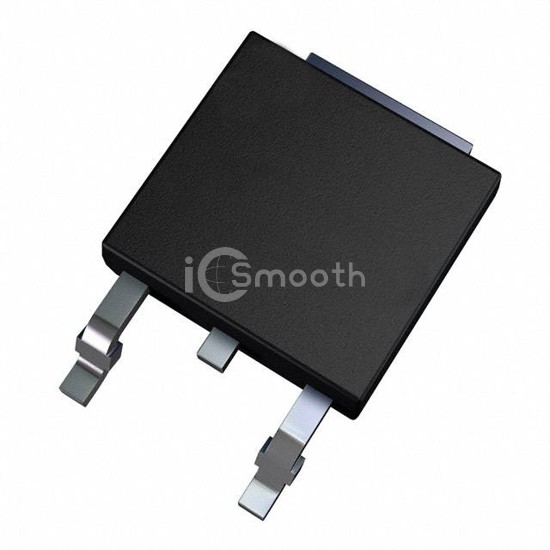

STGD10HF60KD - STMicroelectronics - Transistors - IGBTs - Single
REF: STGD10HF60KD STMicroelectronics
STGD10HF60KD

STMicroelectronics

IGBT 600V 10A DPAK

STGD10HF60KD is a Transistors - IGBTs - Single manufactured by STMicroelectronics. IGBT 600V 10A DPAK. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 150°C (TJ), package / case TO-252-3, DPak (2 Leads + Tab), SC-63, current - collector (ic) (max) 18 A.

Datasheet Request a Quote

In Stock: 1,079

Specifications

17 parameters
Product StatusActive
IGBT Type-
Voltage - Collector Emitter Breakdown (Max)600 V
Current - Collector (Ic) (Max)18 A
Current - Collector Pulsed (Icm)30 A
Vce(on) (Max) @ Vge, Ic2.75V @ 15V, 5A
Power - Max62.5 W
Switching Energy45µJ (on), 105µJ (off)
Input TypeStandard
Gate Charge23 nC
Td (on/off) @ 25°C9.5ns/87ns
Test Condition400V, 5A, 10Ohm, 15V
Reverse Recovery Time (trr)50 ns
Operating Temperature-55°C ~ 150°C (TJ)
Mounting TypeSurface Mount
Package / CaseTO-252-3, DPak (2 Leads + Tab), SC-63
Supplier Device PackageDPAK
