Name: STGB6NC60HD-1
Brand: STMicroelectronics
SKU: STGB6NC60HD-1
Availability: InStock

REF: STGB6NC60HD-1 STMicroelectronics

STGB6NC60HD-1

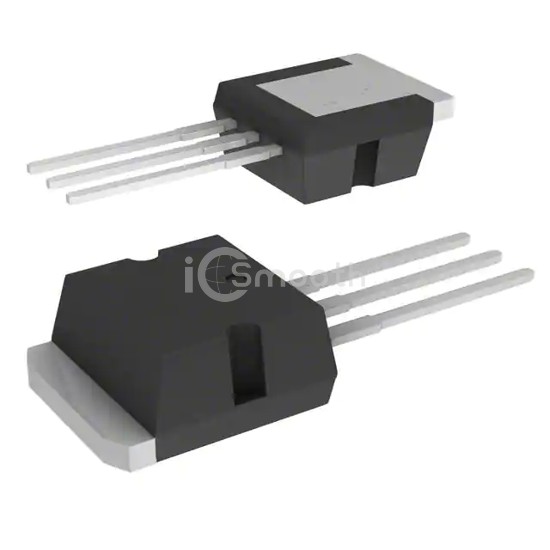

IGBT 600V 15A 56W I2PAK

STGB6NC60HD-1 is a Transistors - IGBTs - Single manufactured by STMicroelectronics. IGBT 600V 15A 56W I2PAK. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 150°C (TJ), package / case TO-262-3 Long Leads, I²Pak, TO-262AA, current - collector (ic) (max) 15 A.

Datasheet Request a Quote

In Stock: 9,690

Specifications

17 parameters

Product Status	Obsolete
IGBT Type	-
Voltage - Collector Emitter Breakdown (Max)	600 V
Current - Collector (Ic) (Max)	15 A
Current - Collector Pulsed (Icm)	21 A
Vce(on) (Max) @ Vge, Ic	2.5V @ 15V, 3A
Power - Max	56 W
Switching Energy	20µJ (on), 68µJ (off)
Input Type	Standard

Gate Charge	13.6 nC
Td (on/off) @ 25°C	12ns/76ns
Test Condition	390V, 3A, 10Ohm, 15V
Reverse Recovery Time (trr)	21 ns
Operating Temperature	-55°C ~ 150°C (TJ)
Mounting Type	Through Hole
Package / Case	TO-262-3 Long Leads, I²Pak, TO-262AA
Supplier Device Package	I2PAK
