Name: STGB5H60DF
Brand: STMicroelectronics
SKU: STGB5H60DF
Price: 0.72 USD
Availability: InStock

REF: STGB5H60DF STMicroelectronics

STGB5H60DF

TRENCH GATE FIELD-STOP IGBT, H S

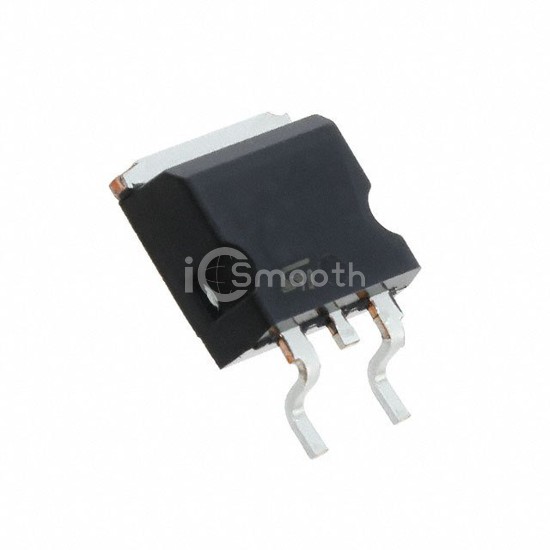

STGB5H60DF is a Transistors - IGBTs - Single manufactured by STMicroelectronics. TRENCH GATE FIELD-STOP IGBT, H S. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 175°C (TJ), package / case TO-263-3, D²Pak (2 Leads + Tab), TO-263AB, current - collector (ic) (max) 10 A.

Datasheet Request a Quote

In Stock: 1,435

Specifications

17 parameters

Product Status	Active
IGBT Type	Trench Field Stop
Voltage - Collector Emitter Breakdown (Max)	600 V
Current - Collector (Ic) (Max)	10 A
Current - Collector Pulsed (Icm)	20 A
Vce(on) (Max) @ Vge, Ic	1.95V @ 15V, 5A
Power - Max	88 W
Switching Energy	56µJ (on), 78.5µJ (off)
Input Type	Standard

Gate Charge	43 nC
Td (on/off) @ 25°C	30ns/140ns
Test Condition	400V, 5A, 47Ohm, 15V
Reverse Recovery Time (trr)	134.5 ns
Operating Temperature	-55°C ~ 175°C (TJ)
Mounting Type	Surface Mount
Package / Case	TO-263-3, D²Pak (2 Leads + Tab), TO-263AB
Supplier Device Package	D²PAK (TO-263)
