Name: STGB3NC120HDT4
Brand: STMicroelectronics
SKU: STGB3NC120HDT4
Price: 2.37 USD
Availability: InStock

REF: STGB3NC120HDT4 STMicroelectronics

STGB3NC120HDT4

STMicroelectronics

IGBT 1200V 14A 75W D2PAK

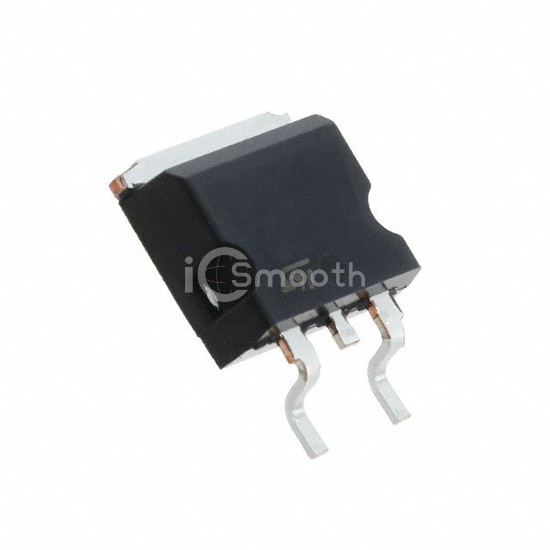

STGB3NC120HDT4 is a Transistors - IGBTs - Single manufactured by STMicroelectronics. IGBT 1200V 14A 75W D2PAK. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 150°C (TJ), package / case TO-263-3, D²Pak (2 Leads + Tab), TO-263AB, current - collector (ic) (max) 14 A.

Datasheet Request a Quote

In Stock: 4,819

Specifications

17 parameters

Product Status	Active
IGBT Type	-
Voltage - Collector Emitter Breakdown (Max)	1200 V
Current - Collector (Ic) (Max)	14 A
Current - Collector Pulsed (Icm)	20 A
Vce(on) (Max) @ Vge, Ic	2.8V @ 15V, 3A
Power - Max	75 W
Switching Energy	236µJ (on), 290µJ (off)
Input Type	Standard

Gate Charge	24 nC
Td (on/off) @ 25°C	15ns/118ns
Test Condition	800V, 3A, 10Ohm, 15V
Reverse Recovery Time (trr)	51 ns
Operating Temperature	-55°C ~ 150°C (TJ)
Mounting Type	Surface Mount
Package / Case	TO-263-3, D²Pak (2 Leads + Tab), TO-263AB
Supplier Device Package	D²PAK (TO-263)
