Name: STGB30V60F
Brand: STMicroelectronics
SKU: STGB30V60F
Availability: InStock

REF: STGB30V60F STMicroelectronics

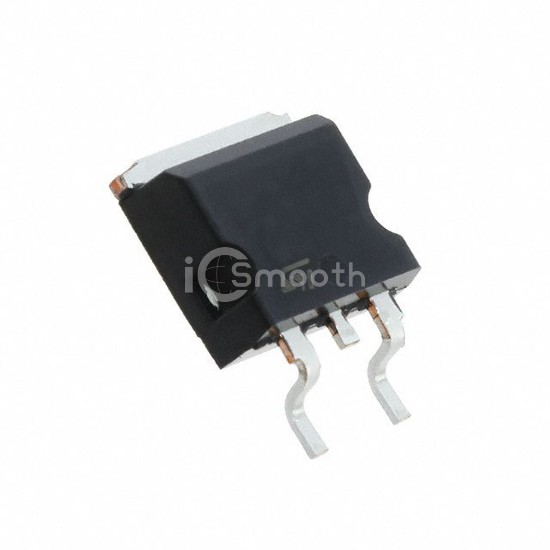

STGB30V60F

TRENCH GATE FIELD-STOP IGBT, V S

STGB30V60F is a Transistors - IGBTs - Single manufactured by STMicroelectronics. TRENCH GATE FIELD-STOP IGBT, V S. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 175°C (TJ), package / case TO-263-3, D²Pak (2 Leads + Tab), TO-263AB, current - collector (ic) (max) 60 A.

Datasheet Request a Quote

In Stock: 4,533

Specifications

17 parameters

Product Status	Obsolete
IGBT Type	Trench Field Stop
Voltage - Collector Emitter Breakdown (Max)	600 V
Current - Collector (Ic) (Max)	60 A
Current - Collector Pulsed (Icm)	120 A
Vce(on) (Max) @ Vge, Ic	2.3V @ 15V, 30A
Power - Max	260 W
Switching Energy	383µJ (on), 233µJ (off)
Input Type	Standard

Gate Charge	163 nC
Td (on/off) @ 25°C	45ns/189ns
Test Condition	400V, 30A, 10Ohm, 15V
Reverse Recovery Time (trr)	-
Operating Temperature	-55°C ~ 175°C (TJ)
Mounting Type	Surface Mount
Package / Case	TO-263-3, D²Pak (2 Leads + Tab), TO-263AB
Supplier Device Package	D²PAK (TO-263)
