Name: STGB30H60DF
Brand: STMicroelectronics
SKU: STGB30H60DF
Availability: InStock

REF: STGB30H60DF STMicroelectronics

STGB30H60DF

IGBT 600V 60A 260W D2PAK

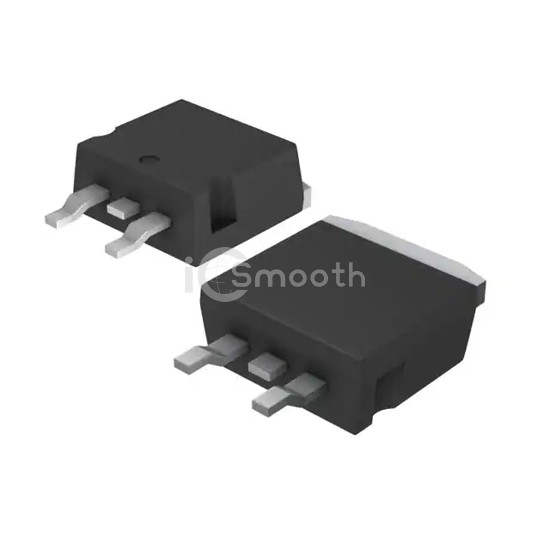

STGB30H60DF is a Transistors - IGBTs - Single manufactured by STMicroelectronics. IGBT 600V 60A 260W D2PAK. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 175°C (TJ), package / case TO-263-3, D²Pak (2 Leads + Tab), TO-263AB, current - collector (ic) (max) 60 A.

Datasheet Request a Quote

In Stock: 7,676

Specifications

17 parameters

Product Status	Obsolete
IGBT Type	Trench Field Stop
Voltage - Collector Emitter Breakdown (Max)	600 V
Current - Collector (Ic) (Max)	60 A
Current - Collector Pulsed (Icm)	120 A
Vce(on) (Max) @ Vge, Ic	2.4V @ 15V, 30A
Power - Max	260 W
Switching Energy	350µJ (on), 400µJ (off)
Input Type	Standard

Gate Charge	105 nC
Td (on/off) @ 25°C	50ns/160ns
Test Condition	400V, 30A, 10Ohm, 15V
Reverse Recovery Time (trr)	110 ns
Operating Temperature	-40°C ~ 175°C (TJ)
Mounting Type	Surface Mount
Package / Case	TO-263-3, D²Pak (2 Leads + Tab), TO-263AB
Supplier Device Package	D2PAK
