Name: STGB20H60DF
Brand: STMicroelectronics
SKU: STGB20H60DF
Price: 1.60 USD
Availability: InStock

REF: STGB20H60DF STMicroelectronics

STGB20H60DF

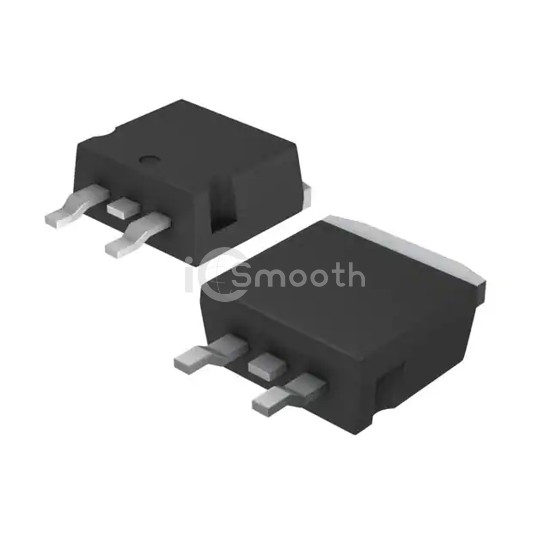

IGBT 600V 40A 167W D2PAK

STGB20H60DF is a Transistors - IGBTs - Single manufactured by STMicroelectronics. IGBT 600V 40A 167W D2PAK. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 175°C (TJ), package / case TO-263-3, D²Pak (2 Leads + Tab), TO-263AB, current - collector (ic) (max) 40 A.

Datasheet Request a Quote

In Stock: 3,774

Specifications

17 parameters

Product Status	Active
IGBT Type	Trench Field Stop
Voltage - Collector Emitter Breakdown (Max)	600 V
Current - Collector (Ic) (Max)	40 A
Current - Collector Pulsed (Icm)	80 A
Vce(on) (Max) @ Vge, Ic	2V @ 15V, 20A
Power - Max	167 W
Switching Energy	209µJ (on), 261µJ (off)
Input Type	Standard

Gate Charge	115 nC
Td (on/off) @ 25°C	42.5ns/177ns
Test Condition	400V, 20A, 10Ohm, 15V
Reverse Recovery Time (trr)	90 ns
Operating Temperature	-55°C ~ 175°C (TJ)
Mounting Type	Surface Mount
Package / Case	TO-263-3, D²Pak (2 Leads + Tab), TO-263AB
Supplier Device Package	D2PAK
