Name: STGB15H60DF
Brand: STMicroelectronics
SKU: STGB15H60DF
Price: 2.59 USD
Availability: InStock

REF: STGB15H60DF STMicroelectronics

STGB15H60DF

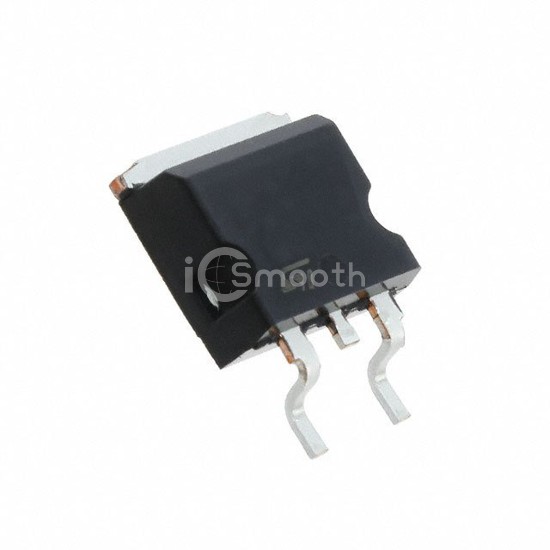

IGBT 600V 30A 115W D2PAK

STGB15H60DF is a Transistors - IGBTs - Single manufactured by STMicroelectronics. IGBT 600V 30A 115W D2PAK. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 175°C (TJ), package / case TO-263-3, D²Pak (2 Leads + Tab), TO-263AB, current - collector (ic) (max) 30 A.

Datasheet Request a Quote

In Stock: 5,305

Specifications

17 parameters

Product Status	Active
IGBT Type	Trench Field Stop
Voltage - Collector Emitter Breakdown (Max)	600 V
Current - Collector (Ic) (Max)	30 A
Current - Collector Pulsed (Icm)	60 A
Vce(on) (Max) @ Vge, Ic	2V @ 15V, 15A
Power - Max	115 W
Switching Energy	136µJ (on), 207µJ (off)
Input Type	Standard

Gate Charge	81 nC
Td (on/off) @ 25°C	24.5ns/118ns
Test Condition	400V, 15A, 10Ohm, 15V
Reverse Recovery Time (trr)	103 ns
Operating Temperature	-55°C ~ 175°C (TJ)
Mounting Type	Surface Mount
Package / Case	TO-263-3, D²Pak (2 Leads + Tab), TO-263AB
Supplier Device Package	D²PAK (TO-263)
