Name: STGB10NB37LZ
Brand: STMicroelectronics
SKU: STGB10NB37LZ
Availability: InStock

REF: STGB10NB37LZ STMicroelectronics

STGB10NB37LZ

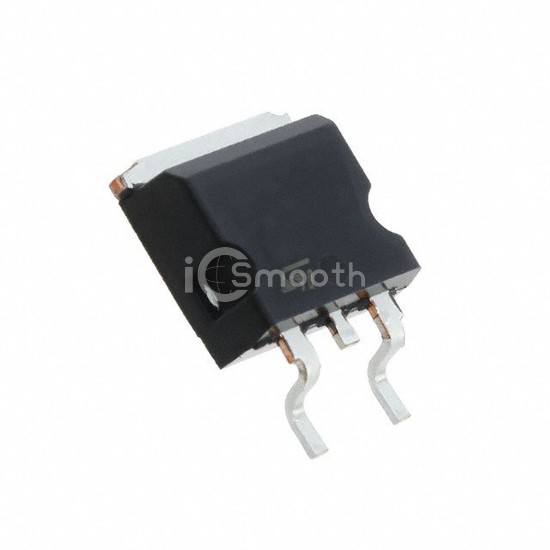

IGBT 440V 20A 125W D2PAK

STGB10NB37LZ is a Transistors - IGBTs - Single manufactured by STMicroelectronics. IGBT 440V 20A 125W D2PAK. Key specifications: mounting type Surface Mount, operating temperature -65°C ~ 175°C (TJ), package / case TO-263-3, D²Pak (2 Leads + Tab), TO-263AB, current - collector (ic) (max) 20 A.

Datasheet Request a Quote

In Stock: 6,446

Specifications

17 parameters

Product Status	Obsolete
IGBT Type	-
Voltage - Collector Emitter Breakdown (Max)	440 V
Current - Collector (Ic) (Max)	20 A
Current - Collector Pulsed (Icm)	40 A
Vce(on) (Max) @ Vge, Ic	1.8V @ 4.5V, 10A
Power - Max	125 W
Switching Energy	2.4mJ (on), 5mJ (off)
Input Type	Standard

Gate Charge	28 nC
Td (on/off) @ 25°C	1.3µs/8µs
Test Condition	328V, 10A, 1kOhm, 5V
Reverse Recovery Time (trr)	-
Operating Temperature	-65°C ~ 175°C (TJ)
Mounting Type	Surface Mount
Package / Case	TO-263-3, D²Pak (2 Leads + Tab), TO-263AB
Supplier Device Package	D²PAK (TO-263)
