Name: STG3P2M10N60B
Brand: STMicroelectronics
SKU: STG3P2M10N60B
Availability: InStock

REF: STG3P2M10N60B STMicroelectronics

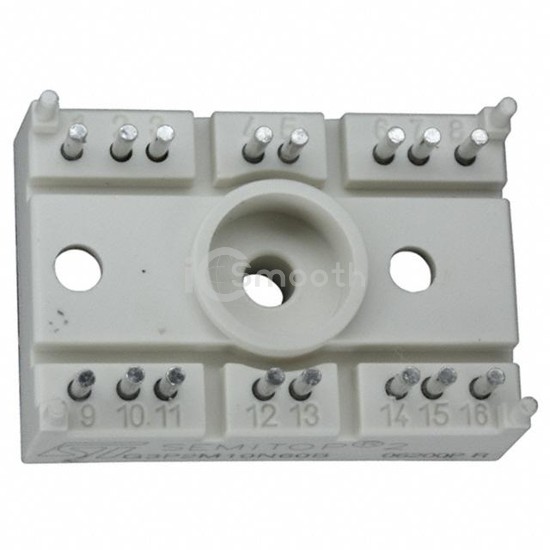

STG3P2M10N60B

IGBT MOD 600V 19A 56W SEMITOP2

STG3P2M10N60B is a Transistors - IGBTs - Modules manufactured by STMicroelectronics. IGBT MOD 600V 19A 56W SEMITOP2. Key specifications: mounting type Chassis Mount, operating temperature -40°C ~ 150°C (TJ), package / case SEMITOP®2, current - collector (ic) (max) 19 A.

Datasheet Request a Quote

In Stock: 2,352

Specifications

15 parameters

Product Status	Obsolete
IGBT Type	-
Configuration	Three Phase Inverter
Voltage - Collector Emitter Breakdown (Max)	600 V
Current - Collector (Ic) (Max)	19 A
Power - Max	56 W
Vce(on) (Max) @ Vge, Ic	2.5V @ 15V, 7A
Current - Collector Cutoff (Max)	10 µA

Input Capacitance (Cies) @ Vce	720 pF @ 25 V
Input	Single Phase Bridge Rectifier
NTC Thermistor	No
Operating Temperature	-40°C ~ 150°C (TJ)
Mounting Type	Chassis Mount
Package / Case	SEMITOP®2
Supplier Device Package	SEMITOP®2
