Name: STDRIVE101
Brand: STMicroelectronics
SKU: STDRIVE101
Price: 1.90 USD
Availability: InStock

REF: STDRIVE101 STMicroelectronics

STDRIVE101

GATE DRIVER

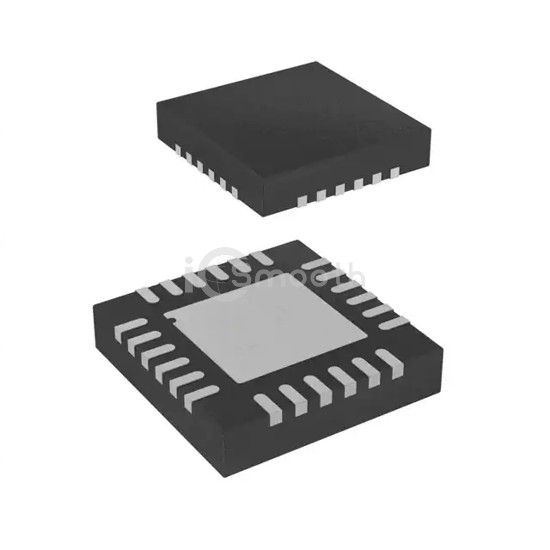

STDRIVE101 is a PMIC - Full, Half-Bridge Drivers manufactured by STMicroelectronics. GATE DRIVER. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C (TJ), voltage - supply 9V ~ 20V, package / case 24-VFQFN Exposed Pad.

Request a Quote

In Stock: 9,342

Tiered Pricing USD

1+ $1.9000 —

10+ $1.3980 -26%

25+ $1.2724 -33%

100+ $1.1348 -40%

490+ $1.0306 -46%

980+ $0.9978 -47%

1,470+ $0.9814 -48%

2,940+ $0.9573 -50%

5,390+ $0.9398 -51% BEST

Specifications

17 parameters

Product Status	Active
Output Configuration	Half Bridge (3)
Applications	DC Motors, General Purpose
Interface	Analog, Logic
Load Type	Capacitive and Resistive
Technology	Power MOSFET, IGBT
Rds On (Typ)	35Ohm
Current - Output / Channel	-
Current - Peak Output	430mA

Voltage - Supply	9V ~ 20V
Voltage - Load	580V
Operating Temperature	-40°C ~ 125°C (TJ)
Features	Bootstrap Circuit
Fault Protection	Over Current, Over Temperature, UVLO
Mounting Type	Surface Mount
Package / Case	24-VFQFN Exposed Pad
Supplier Device Package	24-VFQFPN (4x4)
