Name: ST3L01K7R
Brand: STMicroelectronics
SKU: ST3L01K7R
Price: 1.66 USD
Availability: InStock

REF: ST3L01K7R STMicroelectronics

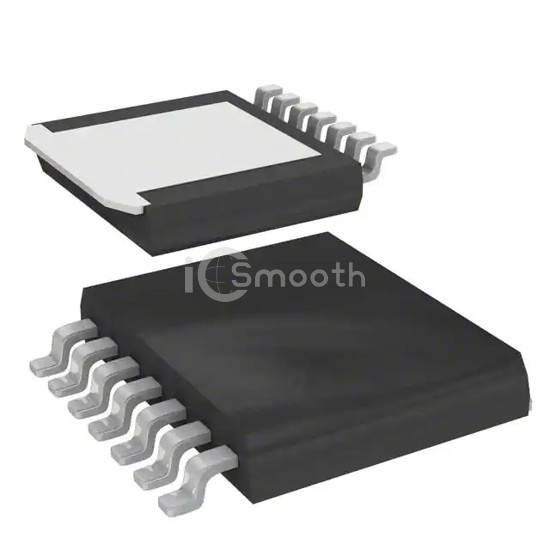

ST3L01K7R

IC REG LINEAR 2.6V/3.3V/8V 7SPAK

ST3L01K7R is a PMIC - Voltage Regulators - Linear manufactured by STMicroelectronics. IC REG LINEAR 2.6V/3.3V/8V 7SPAK. Key specifications: mounting type Surface Mount, operating temperature 0°C ~ 125°C, package / case SPak-7 (7 leads + Tab), current - supply (max) 20 mA.

Datasheet Request a Quote

In Stock: 9,431

Tiered Pricing USD

2,000+ $1.6572 —

4,000+ $1.6230 -2%

6,000+ $1.6059 -3% BEST

Specifications

18 parameters

Product Status	Obsolete
Output Configuration	Positive
Output Type	Fixed
Number of Regulators	3
Voltage - Input (Max)	5.25V
Voltage - Output (Min/Fixed)	2.6V, 3.3V, 8V
Voltage - Output (Max)	-
Voltage Dropout (Max)	1.9V @ 1.2A, 1.4V @ 1A, 2.2V @ 200mA
Current - Output	1.2A, 1A, 200mA

Current - Quiescent (Iq)	10 mA
Current - Supply (Max)	20 mA
PSRR	30dB (100Hz ~ 100kHz) (MIN), 30dB (100Hz ~ 100kHz) (MIN), 40dB (100Hz ~ 100kHz) (MIN)
Control Features	-
Protection Features	Over Temperature, Short Circuit
Operating Temperature	0°C ~ 125°C
Mounting Type	Surface Mount
Package / Case	SPak-7 (7 leads + Tab)
Supplier Device Package	7-SPAK
