Name: ST2L05R3300PT
Brand: STMicroelectronics
SKU: ST2L05R3300PT
Availability: InStock

REF: ST2L05R3300PT STMicroelectronics

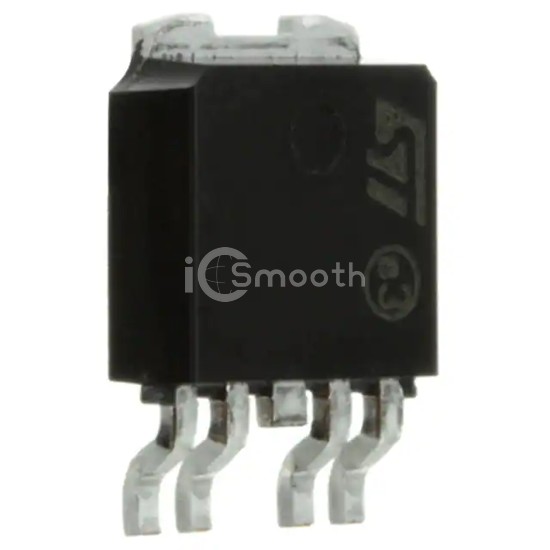

ST2L05R3300PT

IC REG LIN POS ADJ 1A/1A PPAK

ST2L05R3300PT is a PMIC - Voltage Regulators - Linear manufactured by STMicroelectronics. IC REG LIN POS ADJ 1A/1A PPAK. Key specifications: mounting type Surface Mount, operating temperature 0°C ~ 125°C, package / case TO-252-5, DPak (4 Leads + Tab), TO-252AD, current - output 1A, 1A.

Datasheet Request a Quote

In Stock: 7,427

Specifications

18 parameters

Product Status	Obsolete
Output Configuration	Positive
Output Type	Adjustable (Fixed)
Number of Regulators	2
Voltage - Input (Max)	7V
Voltage - Output (Min/Fixed)	1.25V (3.3V)
Voltage - Output (Max)	5.7V
Voltage Dropout (Max)	1.3V @ 1A, 1.3V @ 1A
Current - Output	1A, 1A

Current - Quiescent (Iq)	5 mA
Current - Supply (Max)	-
PSRR	60dB (120Hz)
Control Features	-
Protection Features	Over Current, Over Temperature
Operating Temperature	0°C ~ 125°C
Mounting Type	Surface Mount
Package / Case	TO-252-5, DPak (4 Leads + Tab), TO-252AD
Supplier Device Package	PPAK
