ST2L05-3300K5

In Stock: 5,426

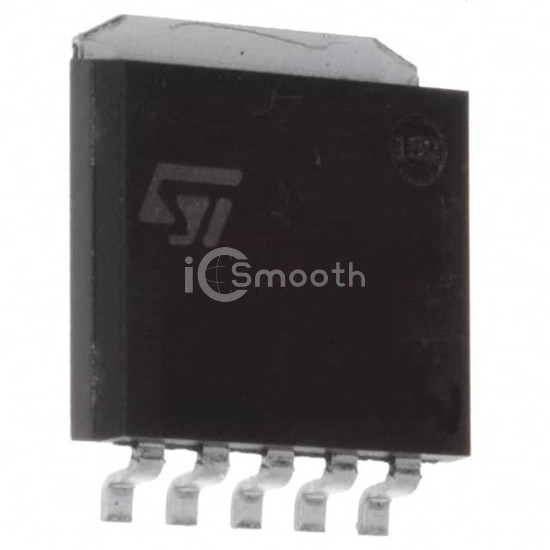

ST2L05-3300K5 - STMicroelectronics - PMIC - Voltage Regulators - Linear
REF: ST2L05-3300K5 STMicroelectronics
ST2L05-3300K5

STMicroelectronics

IC REG LIN POS ADJ 1A/1A 5SPAK

ST2L05-3300K5 is a PMIC - Voltage Regulators - Linear manufactured by STMicroelectronics. IC REG LIN POS ADJ 1A/1A 5SPAK. Key specifications: mounting type Surface Mount, operating temperature 0°C ~ 125°C, package / case SPak-5 (5 leads + Tab), current - output 1A, 1A.

Datasheet Request a Quote

In Stock: 5,426

Specifications

18 parameters
Product StatusObsolete
Output ConfigurationPositive
Output TypeAdjustable (Fixed)
Number of Regulators2
Voltage - Input (Max)7V
Voltage - Output (Min/Fixed)1.25V (3.3V)
Voltage - Output (Max)5.7V
Voltage Dropout (Max)1.3V @ 1A, 1.3V @ 1A
Current - Output1A, 1A
Current - Quiescent (Iq)5 mA
Current - Supply (Max)-
PSRR60dB (120Hz)
Control Features-
Protection FeaturesOver Current, Over Temperature
Operating Temperature0°C ~ 125°C
Mounting TypeSurface Mount
Package / CaseSPak-5 (5 leads + Tab)
Supplier Device Package5-SPAK
