Name: ST2L01K5R
Brand: STMicroelectronics
SKU: ST2L01K5R
Price: 1.08 USD
Availability: InStock

REF: ST2L01K5R STMicroelectronics

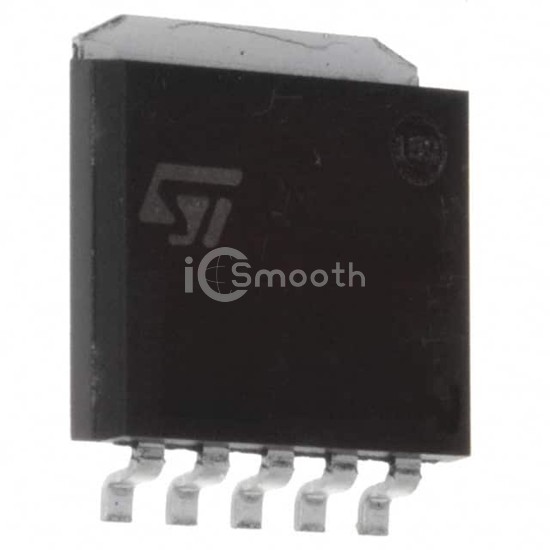

ST2L01K5R

IC REG LIN POS ADJ 1A/1A 5SPAK

ST2L01K5R is a PMIC - Voltage Regulators - Linear manufactured by STMicroelectronics. IC REG LIN POS ADJ 1A/1A 5SPAK. Key specifications: mounting type Surface Mount, operating temperature 0°C ~ 125°C, package / case SPak-5 (5 leads + Tab), current - output 1A, 1A.

Datasheet Request a Quote

In Stock: 5,492

Tiered Pricing USD

2,000+ $1.0750 —

4,000+ $1.0510 -2%

6,000+ $1.0390 -3% BEST

Specifications

18 parameters

Product Status	Obsolete
Output Configuration	Positive
Output Type	Adjustable (Fixed)
Number of Regulators	2
Voltage - Input (Max)	5.25V
Voltage - Output (Min/Fixed)	1.25V (3.3V)
Voltage - Output (Max)	3V
Voltage Dropout (Max)	1.3V @ 1A, 1.3V @ 1A
Current - Output	1A, 1A

Current - Quiescent (Iq)	-
Current - Supply (Max)	-
PSRR	70db ~ 38dB (1kHz ~ 100kHz), 80dB (43dB (1kHz ~ 100kHz)
Control Features	-
Protection Features	Over Current, Over Temperature
Operating Temperature	0°C ~ 125°C
Mounting Type	Surface Mount
Package / Case	SPak-5 (5 leads + Tab)
Supplier Device Package	5-SPAK
