ST2378ETTR

In Stock: 4,177

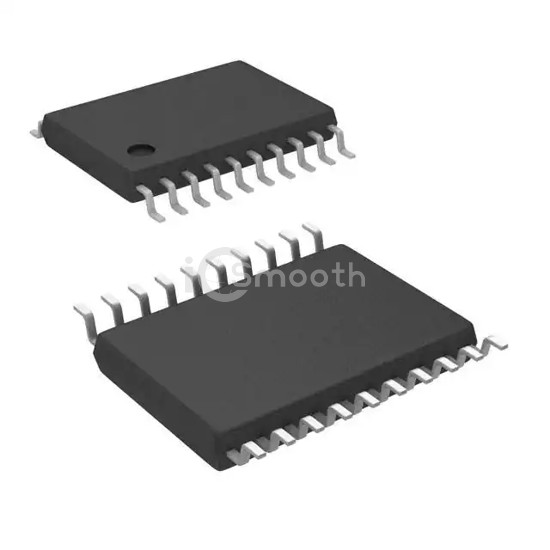

ST2378ETTR - STMicroelectronics - Logic - Translators, Level Shifters
REF: ST2378ETTR STMicroelectronics
ST2378ETTR

STMicroelectronics

IC TRNSLTR BIDIRECTIONAL 20TSSOP

ST2378ETTR is a Logic - Translators, Level Shifters manufactured by STMicroelectronics. IC TRNSLTR BIDIRECTIONAL 20TSSOP. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 85°C (TA), package / case 20-TSSOP (0.173", 4.40mm Width), output type Open Drain.

Datasheet Request a Quote

In Stock: 4,177

Tiered Pricing USD
1+ $2.8400 —
10+ $2.1220 -25%
25+ $1.9424 -32%
100+ $1.7446 -39%
250+ $1.6671 -41% BEST

Specifications

16 parameters
Product StatusActive
Translator TypeVoltage Level
Channel TypeBidirectional
Number of Circuits1
Channels per Circuit8
Voltage - VCCA1.7 V ~ 5.5 V
Voltage - VCCB1.7 V ~ 5.5 V
Input Signal-
Output Signal-
Output TypeOpen Drain
Data Rate13Mbps
Operating Temperature-40°C ~ 85°C (TA)
FeaturesAuto-Direction Sensing, Power-Off Protection
Mounting TypeSurface Mount
Package / Case20-TSSOP (0.173", 4.40mm Width)
Supplier Device Package20-TSSOP
