Name: ST1S09PUR
Brand: STMicroelectronics
SKU: ST1S09PUR
Price: 2.23 USD
Availability: InStock

REF: ST1S09PUR STMicroelectronics

ST1S09PUR

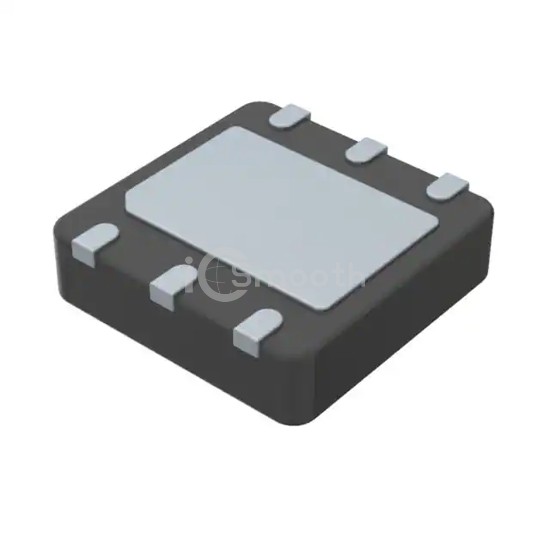

IC REG BUCK ADJUSTABLE 2A 6DFN

ST1S09PUR is a PMIC - Voltage Regulators - DC DC Switching Regulators manufactured by STMicroelectronics. IC REG BUCK ADJUSTABLE 2A 6DFN. Key specifications: mounting type Surface Mount, operating temperature -30°C ~ 85°C (TJ), package / case 6-VDFN Exposed Pad, current - output 2A.

Datasheet Request a Quote

In Stock: 5

Tiered Pricing USD

1+ $2.2300 —

10+ $1.6480 -26%

25+ $1.5036 -33%

100+ $1.3446 -40%

250+ $1.2689 -43%

500+ $1.2232 -45%

1,000+ $1.1856 -47% BEST

Specifications

17 parameters

Product Status	Active
Function	Step-Down
Output Configuration	Positive
Topology	Buck
Output Type	Adjustable
Number of Outputs	1
Voltage - Input (Min)	2.7V
Voltage - Input (Max)	6V
Voltage - Output (Min/Fixed)	0.8V

Voltage - Output (Max)	5.22V
Current - Output	2A
Frequency - Switching	1.5MHz
Synchronous Rectifier	Yes
Operating Temperature	-30°C ~ 85°C (TJ)
Mounting Type	Surface Mount
Package / Case	6-VDFN Exposed Pad
Supplier Device Package	6-DFN (3x3)
