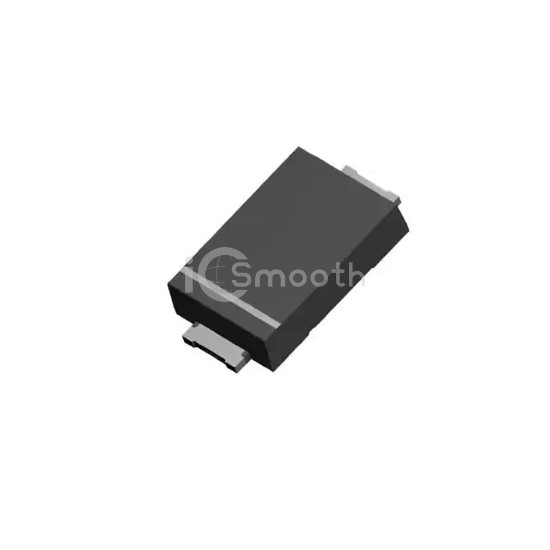

Name: SMA6F40A
Brand: STMicroelectronics
SKU: SMA6F40A
Price: 0.09 USD
Availability: InStock

REF: SMA6F40A STMicroelectronics

SMA6F40A

TVS DIODE 40VWM 84VC SMAFLAT

SMA6F40A is a TVS - Diodes manufactured by STMicroelectronics. TVS DIODE 40VWM 84VC SMAFLAT. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 175°C (TJ), package / case DO-221AC, SMA Flat Leads.

Request a Quote

In Stock: 9,713

Tiered Pricing USD

10,000+ $0.0938 —

20,000+ $0.0919 -2% BEST

Specifications

16 parameters

Product Status	Active
Type	Zener
Unidirectional Channels	1
Bidirectional Channels	-
Voltage - Reverse Standoff (Typ)	40V (Max)
Voltage - Breakdown (Min)	44.4V
Voltage - Clamping (Max) @ Ipp	84V
Current - Peak Pulse (10/1000µs)	48A (8/20µs)

Power - Peak Pulse	600W
Power Line Protection	No
Applications	General Purpose
Capacitance @ Frequency	-
Operating Temperature	-55°C ~ 175°C (TJ)
Mounting Type	Surface Mount
Package / Case	DO-221AC, SMA Flat Leads
Supplier Device Package	SMAflat
