Name: SM30T56AY
Brand: STMicroelectronics
SKU: SM30T56AY
Price: 1.20 USD
Availability: InStock

REF: SM30T56AY STMicroelectronics

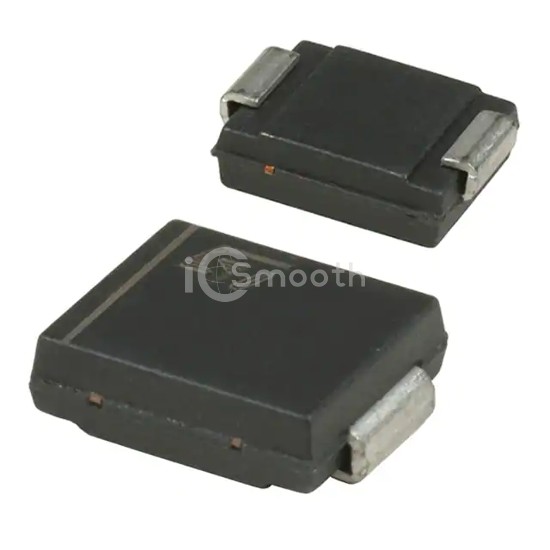

SM30T56AY

TVS DIODE 48VWM 76.6VC DO214AB

SM30T56AY is a TVS - Diodes manufactured by STMicroelectronics. TVS DIODE 48VWM 76.6VC DO214AB. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 175°C (TJ), package / case DO-214AB, SMC.

Datasheet Request a Quote

In Stock: 4,348

Tiered Pricing USD

1+ $1.2000 —

10+ $0.9700 -19%

100+ $0.7380 -39%

500+ $0.5831 -51%

1,000+ $0.5310 -56% BEST

Specifications

16 parameters

Product Status	Active
Type	Zener
Unidirectional Channels	1
Bidirectional Channels	-
Voltage - Reverse Standoff (Typ)	48V
Voltage - Breakdown (Min)	53.2V
Voltage - Clamping (Max) @ Ipp	76.6V
Current - Peak Pulse (10/1000µs)	38A

Power - Peak Pulse	3000W (3kW)
Power Line Protection	No
Applications	Automotive
Capacitance @ Frequency	-
Operating Temperature	-55°C ~ 175°C (TJ)
Mounting Type	Surface Mount
Package / Case	DO-214AB, SMC
Supplier Device Package	SMC (DO-214AB)
