PWD5F60TR

In Stock: 2,044

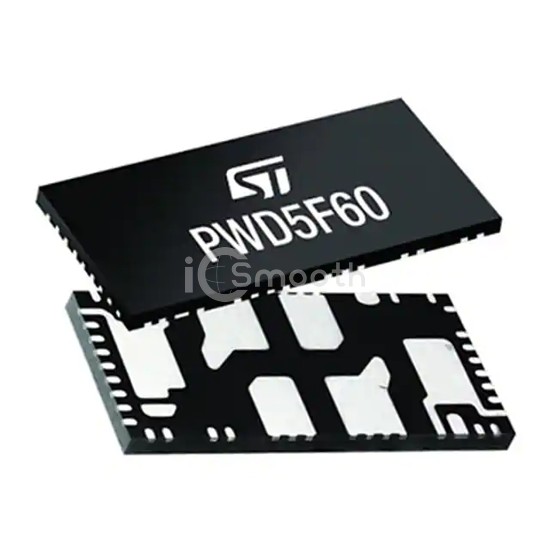

PWD5F60TR - STMicroelectronics - PMIC - Full, Half-Bridge Drivers
REF: PWD5F60TR STMicroelectronics
PWD5F60TR

STMicroelectronics

HIGH-DENSITY POWER DRIVER - HIGH

PWD5F60TR is a PMIC - Full, Half-Bridge Drivers manufactured by STMicroelectronics. HIGH-DENSITY POWER DRIVER - HIGH. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C (TJ), voltage - supply 10V ~ 20V, package / case 46-PowerVQFN.

Datasheet Request a Quote

In Stock: 2,044

Tiered Pricing USD
1+ $4.4900 —
10+ $3.4110 -24%
25+ $3.1404 -30%
100+ $2.8427 -37%
250+ $2.7008 -40%
500+ $2.6153 -42%
1,000+ $2.5449 -43% BEST

Specifications

17 parameters
Product StatusActive
Output ConfigurationHalf Bridge (2)
ApplicationsIndustrial
InterfaceLogic
Load TypeInductive
TechnologyPower MOSFET
Rds On (Typ)1.38Ohm
Current - Output / Channel3.5A
Current - Peak Output14A
Voltage - Supply10V ~ 20V
Voltage - Load-
Operating Temperature-40°C ~ 125°C (TJ)
Features-
Fault ProtectionUVLO
Mounting TypeSurface Mount
Package / Case46-PowerVQFN
Supplier Device Package46-VFQFPN (15x7)
