Name: LMV822IST
Brand: STMicroelectronics
SKU: LMV822IST
Price: 0.83 USD
Availability: InStock

REF: LMV822IST STMicroelectronics

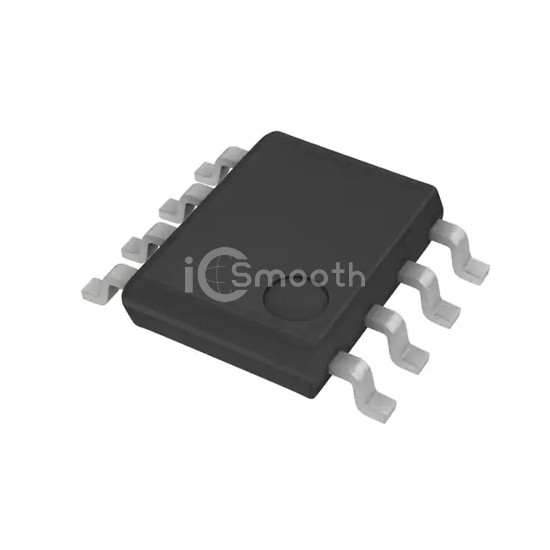

LMV822IST

IC OPAMP GP 2 CIRCUIT 8MINISO

LMV822IST is a Linear - Amplifiers - Instrumentation, OP Amps, Buffer Amps manufactured by STMicroelectronics. IC OPAMP GP 2 CIRCUIT 8MINISO. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C, package / case 8-TSSOP, 8-MSOP (0.118", 3.00mm Width), current - supply 300µA (x2 Channels).

Datasheet Request a Quote

In Stock: 5,435

Specifications

17 parameters

Product Status	Active
Amplifier Type	General Purpose
Number of Circuits	2
Output Type	Rail-to-Rail
Slew Rate	1.9V/µs
Gain Bandwidth Product	5.5 MHz
-3db Bandwidth	-
Current - Input Bias	60 nA
Voltage - Input Offset	3.5 mV

Current - Supply	300µA (x2 Channels)
Current - Output / Channel	70 mA
Voltage - Supply Span (Min)	2.5 V
Voltage - Supply Span (Max)	5.5 V
Operating Temperature	-40°C ~ 125°C
Mounting Type	Surface Mount
Package / Case	8-TSSOP, 8-MSOP (0.118", 3.00mm Width)
Supplier Device Package	8-MiniSO
